tx_queue.h File Reference

#include <stdbool.h>
#include <stdint.h>
#include "drivers/w5500_driver.h"
#include "protocol/hdlc_common.h"
#include "system/error.h"
#include "system/ringbuffer.h"

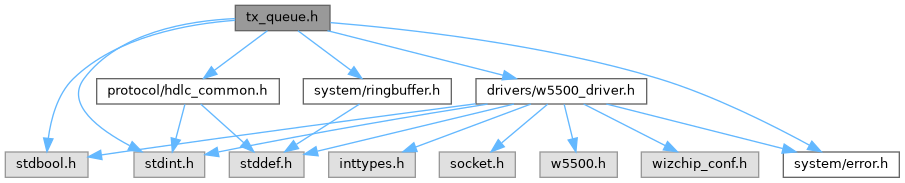

Include dependency graph for tx_queue.h:

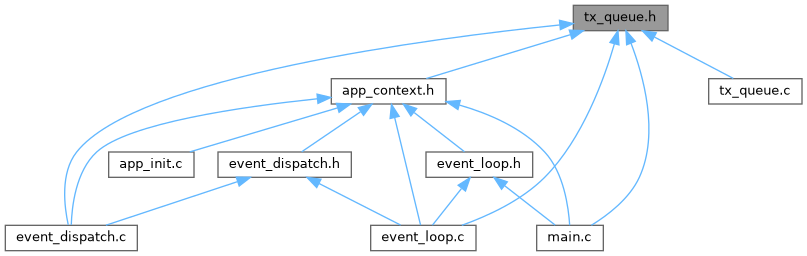

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	TX_QUEUE_ENTRY_T
	One queued HDLC frame plus drain offset state. More...
struct	TX_QUEUE_T
	TX queue runtime state. More...

Macros
#define	TX_FRAME_QUEUE_SIZE   64
	Number of frame entries available in the TX queue ring buffer.
#define	TX_FRAME_MAX_SIZE_BYTE   2048
	The maximum size of a hdlc frame in the queue Max UDP size we accept is 1472 byte, adding 2 CRC frames nd start/end Flags that gives 1476 byte. Worst case stuffing approximation would be 1 bit per 5 bits. Together that gives ~14150 bits per frame ~1769 bytes. To give conservative headroom we default to 2048.
#define	TX_QUEUE_DECLARE_AND_INIT(var_name)
	Convenience macro to declare and initialize a TX queue and backing storage.

Functions
e2s_error_t	tx_queue_enqueue_udp_frame (TX_QUEUE_T *queue, const UDP_FRAME_T *frame)
	Encode UDP frame to HDLC and append it to TX queue.
bool	tx_queue_is_empty (TX_QUEUE_T *queue)
	Check whether queue and active entry are fully drained.
e2s_error_t	tx_queue_drain (TX_QUEUE_T *queue, size_t bytes_to_drain, size_t *bytes_drained)
	Drain up to bytes_to_drain bytes from queue into TX FIFO.
e2s_error_t	poll_queue_stats (TX_QUEUE_T *queue)
	Emit queue usage statistics when needed.
e2s_error_t	tx_queue_init (TX_QUEUE_T *queue, uint8_t *buffer_data)
	Initialize TX queue and ring buffer storage.
size_t	tx_queue_get_count (const TX_QUEUE_T *queue)
	Get current number of queued entries.

Macro Definition Documentation

TX_FRAME_MAX_SIZE_BYTE

#define TX_FRAME_MAX_SIZE_BYTE   2048

The maximum size of a hdlc frame in the queue Max UDP size we accept is 1472 byte, adding 2 CRC frames nd start/end Flags that gives 1476 byte. Worst case stuffing approximation would be 1 bit per 5 bits. Together that gives ~14150 bits per frame ~1769 bytes. To give conservative headroom we default to 2048.

Definition at line 42 of file tx_queue.h.

TX_FRAME_QUEUE_SIZE

#define TX_FRAME_QUEUE_SIZE   64

Number of frame entries available in the TX queue ring buffer.

Definition at line 32 of file tx_queue.h.

TX_QUEUE_DECLARE_AND_INIT

#define TX_QUEUE_DECLARE_AND_INIT

(

var_name

)

Value:

    TX_QUEUE_T var_name;                                                               \
    uint8_t    var_name##_buffer_data[TX_FRAME_QUEUE_SIZE * sizeof(TX_QUEUE_ENTRY_T)]; \
    Ringbuffer var_name##_ringbuf;                                                     \
    RbInit(&var_name##_ringbuf, var_name##_buffer_data, TX_FRAME_QUEUE_SIZE,           \
           sizeof(TX_QUEUE_ENTRY_T));                                                  \
    tx_queue_init(&var_name, &var_name##_ringbuf)

Convenience macro to declare and initialize a TX queue and backing storage.

Parameters

var_name

Base variable name for queue and storage symbols.

Definition at line 48 of file tx_queue.h.

Function Documentation

poll_queue_stats()

e2s_error_t poll_queue_stats

(

TX_QUEUE_T *

queue

)

Emit queue usage statistics when needed.

Parameters

queue

TX queue instance.

Returns

Error code.

Definition at line 49 of file tx_queue.c.

References Ringbuffer::capacity, Ringbuffer::count, E2S_ERR_TX_QUEUE_NOT_INITIALIZED, E2S_OK, LOG_INFO, LOG_TRACE, TX_QUEUE_T::queue_buffer, QUEUE_FILLING_UP_THRESHOLD, and TX_QUEUE_T::queue_touched.

Referenced by poll_tx_pipeline().

Here is the caller graph for this function:

tx_queue_drain()

e2s_error_t tx_queue_drain	(	TX_QUEUE_T *	queue,
		size_t	bytes_to_drain,
		size_t *	bytes_drained
	)

Drain up to bytes_to_drain bytes from queue into TX FIFO.

Parameters

queue	TX queue instance.
bytes_to_drain	Maximum bytes to attempt.
bytes_drained	Pointer to where the number of actually drained bytes is written.

Returns

Error code.

Restart only when CTS changed during this frame's transmission window. Stale edges from idle periods must not retrigger unrelated future frames.

Definition at line 129 of file tx_queue.c.

References HDLC_FRAME_T::capacity, TX_QUEUE_T::current_entry, TX_QUEUE_T::current_frame_cts_seq_start, TX_QUEUE_T::current_frame_cts_seq_valid, E2S_ERR_TX_QUEUE_NOT_INITIALIZED, E2S_OK, TX_QUEUE_ENTRY_T::frame, HDLC_FRAME_T::length, LOG_DEBUG, LOG_TRACE, TX_QUEUE_ENTRY_T::offset, TX_QUEUE_ENTRY_T::payload, HDLC_FRAME_T::payload, TX_QUEUE_T::queue_buffer, RbPopFront(), tx_clock_get_cts_toggle_seq(), tx_clock_hard_reset(), tx_queue_drain_bytes(), and TX_QUEUE_TX_INPROG_MS.

Referenced by poll_tx_pipeline().

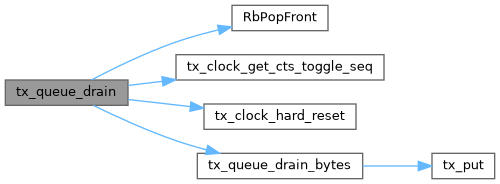

Here is the call graph for this function:

Here is the caller graph for this function:

tx_queue_enqueue_udp_frame()

e2s_error_t tx_queue_enqueue_udp_frame	(	TX_QUEUE_T *	queue,
		const UDP_FRAME_T *	frame
	)

Encode UDP frame to HDLC and append it to TX queue.

Parameters

queue	TX queue instance.
frame	UDP frame payload source.

Returns

Error code.

Definition at line 201 of file tx_queue.c.

References HDLC_FRAME_T::capacity, Ringbuffer::capacity, Ringbuffer::count, E2S_ERR_HDLC_ENCODE_FAILED, E2S_ERR_TX_QUEUE_FULL, E2S_ERR_TX_QUEUE_NOT_INITIALIZED, E2S_OK, TX_QUEUE_ENTRY_T::frame, hdlc_encode(), UDP_FRAME_T::length, HDLC_FRAME_T::length, LOG_DEBUG, TX_QUEUE_ENTRY_T::payload, UDP_FRAME_T::payload, HDLC_FRAME_T::payload, TX_QUEUE_T::queue_buffer, TX_QUEUE_T::queue_touched, and RbPushBack().

Referenced by event_dispatch(), and poll_and_enqueue_udp_rx().

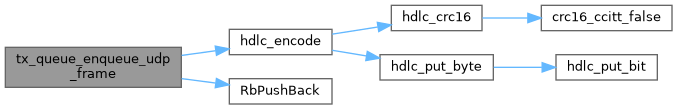

Here is the call graph for this function:

Here is the caller graph for this function:

tx_queue_get_count()

size_t tx_queue_get_count

(

const TX_QUEUE_T *

queue

)

Get current number of queued entries.

Parameters

queue

TX queue instance.

Returns

Entry count.

Definition at line 113 of file tx_queue.c.

References Ringbuffer::count, and TX_QUEUE_T::queue_buffer.

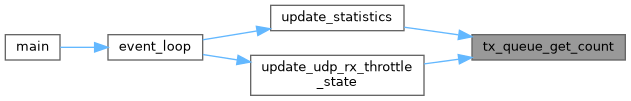

Referenced by update_statistics(), and update_udp_rx_throttle_state().

Here is the caller graph for this function:

tx_queue_init()

e2s_error_t tx_queue_init	(	TX_QUEUE_T *	queue,
		uint8_t *	buffer_data
	)

Initialize TX queue and ring buffer storage.

Parameters

queue	TX queue instance.
buffer_data	Backing storage for ring buffer entries.

Returns

Error code.

Definition at line 38 of file tx_queue.c.

References TX_QUEUE_T::current_frame_cts_seq_start, TX_QUEUE_T::current_frame_cts_seq_valid, E2S_OK, TX_QUEUE_T::queue_buffer, TX_QUEUE_T::queue_touched, RbInit(), TX_FRAME_QUEUE_SIZE, and TX_QUEUE_T::tx_wire_bytes.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

tx_queue_is_empty()

bool tx_queue_is_empty

(

TX_QUEUE_T *

queue

)

Check whether queue and active entry are fully drained.

Parameters

queue

TX queue instance.

Returns

true if no pending or active bytes remain.

Definition at line 122 of file tx_queue.c.

References Ringbuffer::count, TX_QUEUE_T::current_entry, TX_QUEUE_ENTRY_T::frame, HDLC_FRAME_T::length, TX_QUEUE_ENTRY_T::offset, and TX_QUEUE_T::queue_buffer.

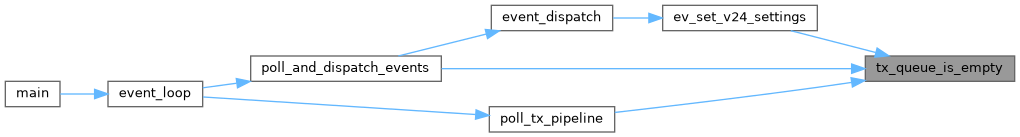

Referenced by ev_set_v24_settings(), poll_and_dispatch_events(), and poll_tx_pipeline().

Here is the caller graph for this function:
