tx_queue.c File Reference

#include "tx_queue.h"
#include <stdbool.h>
#include <stdint.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include "hardware/pio.h"
#include "drivers/pio_tx_rx_driver.h"
#include "drivers/w5500_driver.h"
#include "protocol/hdlc_encoder.h"
#include "system/common.h"
#include "system/error.h"
#include "system/ringbuffer.h"
#include "pico/time.h"

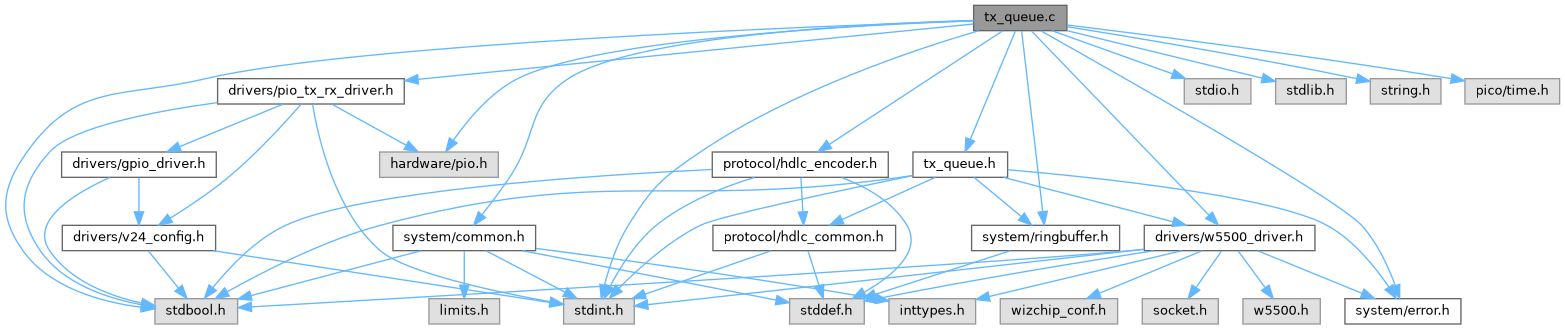

Include dependency graph for tx_queue.c:

Go to the source code of this file.

Macros
#define	TX_QUEUE_TX_INPROG_MS   1000U
#define	QUEUE_FILLING_UP_THRESHOLD   5U

Functions
e2s_error_t	tx_queue_init (TX_QUEUE_T *queue, uint8_t *buffer_data)
	Initialize TX queue and ring buffer storage.
e2s_error_t	poll_queue_stats (TX_QUEUE_T *queue)
	Emit queue usage statistics when needed.
static e2s_error_t	tx_queue_drain_bytes (TX_QUEUE_T *queue, TX_QUEUE_ENTRY_T *entry, size_t bytes_to_drain, size_t *bytes_drained)
size_t	tx_queue_get_count (const TX_QUEUE_T *queue)
	Get current number of queued entries.
bool	tx_queue_is_empty (TX_QUEUE_T *queue)
	Check whether queue and active entry are fully drained.
e2s_error_t	tx_queue_drain (TX_QUEUE_T *queue, size_t bytes_to_drain, size_t *bytes_drained)
	Drain up to bytes_to_drain bytes from queue into TX FIFO.
e2s_error_t	tx_queue_enqueue_udp_frame (TX_QUEUE_T *queue, const UDP_FRAME_T *frame)
	Encode UDP frame to HDLC and append it to TX queue.

Macro Definition Documentation

QUEUE_FILLING_UP_THRESHOLD

#define QUEUE_FILLING_UP_THRESHOLD   5U

TX_QUEUE_TX_INPROG_MS

#define TX_QUEUE_TX_INPROG_MS   1000U

Definition at line 36 of file tx_queue.c.

Function Documentation

poll_queue_stats()

e2s_error_t poll_queue_stats

(

TX_QUEUE_T *

queue

)

Emit queue usage statistics when needed.

Parameters

queue

TX queue instance.

Returns

Error code.

Definition at line 49 of file tx_queue.c.

References Ringbuffer::capacity, Ringbuffer::count, E2S_ERR_TX_QUEUE_NOT_INITIALIZED, E2S_OK, LOG_INFO, LOG_TRACE, TX_QUEUE_T::queue_buffer, QUEUE_FILLING_UP_THRESHOLD, and TX_QUEUE_T::queue_touched.

Referenced by poll_tx_pipeline().

Here is the caller graph for this function:

tx_queue_drain()

e2s_error_t tx_queue_drain	(	TX_QUEUE_T *	queue,
		size_t	bytes_to_drain,
		size_t *	bytes_drained
	)

Drain up to bytes_to_drain bytes from queue into TX FIFO.

Parameters

queue	TX queue instance.
bytes_to_drain	Maximum bytes to attempt.
bytes_drained	Pointer to where the number of actually drained bytes is written.

Returns

Error code.

Restart only when CTS changed during this frame's transmission window. Stale edges from idle periods must not retrigger unrelated future frames.

Definition at line 129 of file tx_queue.c.

References HDLC_FRAME_T::capacity, TX_QUEUE_T::current_entry, TX_QUEUE_T::current_frame_cts_seq_start, TX_QUEUE_T::current_frame_cts_seq_valid, E2S_ERR_TX_QUEUE_NOT_INITIALIZED, E2S_OK, TX_QUEUE_ENTRY_T::frame, HDLC_FRAME_T::length, LOG_DEBUG, LOG_TRACE, TX_QUEUE_ENTRY_T::offset, TX_QUEUE_ENTRY_T::payload, HDLC_FRAME_T::payload, TX_QUEUE_T::queue_buffer, RbPopFront(), tx_clock_get_cts_toggle_seq(), tx_clock_hard_reset(), tx_queue_drain_bytes(), and TX_QUEUE_TX_INPROG_MS.

Referenced by poll_tx_pipeline().

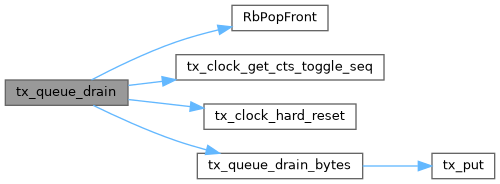

Here is the call graph for this function:

Here is the caller graph for this function:

tx_queue_drain_bytes()

static e2s_error_t tx_queue_drain_bytes ( TX_QUEUE_T *  queue, TX_QUEUE_ENTRY_T *  entry, size_t  bytes_to_drain, size_t *  bytes_drained  )

static

Definition at line 75 of file tx_queue.c.

References E2S_ERR_TX_QUEUE_NOT_INITIALIZED, E2S_OK, TX_QUEUE_ENTRY_T::frame, HDLC_FRAME_T::length, TX_QUEUE_ENTRY_T::offset, HDLC_FRAME_T::payload, tx_put(), and TX_QUEUE_T::tx_wire_bytes.

Referenced by tx_queue_drain().

Here is the call graph for this function:

Here is the caller graph for this function:

tx_queue_enqueue_udp_frame()

e2s_error_t tx_queue_enqueue_udp_frame	(	TX_QUEUE_T *	queue,
		const UDP_FRAME_T *	frame
	)

Encode UDP frame to HDLC and append it to TX queue.

Parameters

queue	TX queue instance.
frame	UDP frame payload source.

Returns

Error code.

Definition at line 201 of file tx_queue.c.

References HDLC_FRAME_T::capacity, Ringbuffer::capacity, Ringbuffer::count, E2S_ERR_HDLC_ENCODE_FAILED, E2S_ERR_TX_QUEUE_FULL, E2S_ERR_TX_QUEUE_NOT_INITIALIZED, E2S_OK, TX_QUEUE_ENTRY_T::frame, hdlc_encode(), UDP_FRAME_T::length, HDLC_FRAME_T::length, LOG_DEBUG, TX_QUEUE_ENTRY_T::payload, UDP_FRAME_T::payload, HDLC_FRAME_T::payload, TX_QUEUE_T::queue_buffer, TX_QUEUE_T::queue_touched, and RbPushBack().

Referenced by event_dispatch(), and poll_and_enqueue_udp_rx().

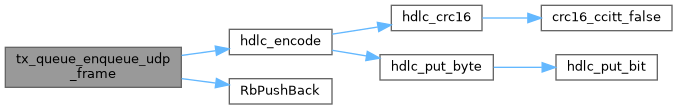

Here is the call graph for this function:

Here is the caller graph for this function:

tx_queue_get_count()

size_t tx_queue_get_count

(

const TX_QUEUE_T *

queue

)

Get current number of queued entries.

Parameters

queue

TX queue instance.

Returns

Entry count.

Definition at line 113 of file tx_queue.c.

References Ringbuffer::count, and TX_QUEUE_T::queue_buffer.

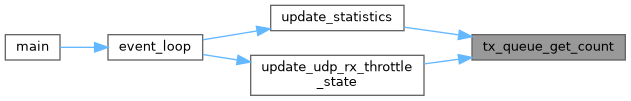

Referenced by update_statistics(), and update_udp_rx_throttle_state().

Here is the caller graph for this function:

tx_queue_init()

e2s_error_t tx_queue_init	(	TX_QUEUE_T *	queue,
		uint8_t *	buffer_data
	)

Initialize TX queue and ring buffer storage.

Parameters

queue	TX queue instance.
buffer_data	Backing storage for ring buffer entries.

Returns

Error code.

Definition at line 38 of file tx_queue.c.

References TX_QUEUE_T::current_frame_cts_seq_start, TX_QUEUE_T::current_frame_cts_seq_valid, E2S_OK, TX_QUEUE_T::queue_buffer, TX_QUEUE_T::queue_touched, RbInit(), TX_FRAME_QUEUE_SIZE, and TX_QUEUE_T::tx_wire_bytes.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

tx_queue_is_empty()

bool tx_queue_is_empty

(

TX_QUEUE_T *

queue

)

Check whether queue and active entry are fully drained.

Parameters

queue

TX queue instance.

Returns

true if no pending or active bytes remain.

Definition at line 122 of file tx_queue.c.

References Ringbuffer::count, TX_QUEUE_T::current_entry, TX_QUEUE_ENTRY_T::frame, HDLC_FRAME_T::length, TX_QUEUE_ENTRY_T::offset, and TX_QUEUE_T::queue_buffer.

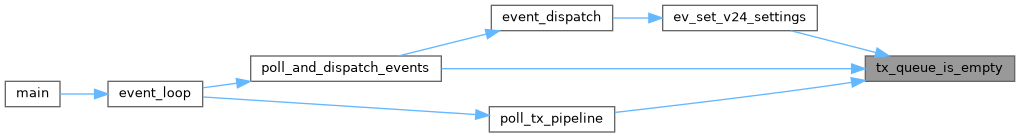

Referenced by ev_set_v24_settings(), poll_and_dispatch_events(), and poll_tx_pipeline().

Here is the caller graph for this function:
