persistent_config.c File Reference

#include "persistent_config.h"
#include <assert.h>
#include <inttypes.h>
#include <malloc.h>
#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>
#include <string.h>
#include "boards/pico.h"
#include "hardware/flash.h"
#include "hardware/regs/addressmap.h"
#include "hardware/sync.h"
#include "system/common.h"

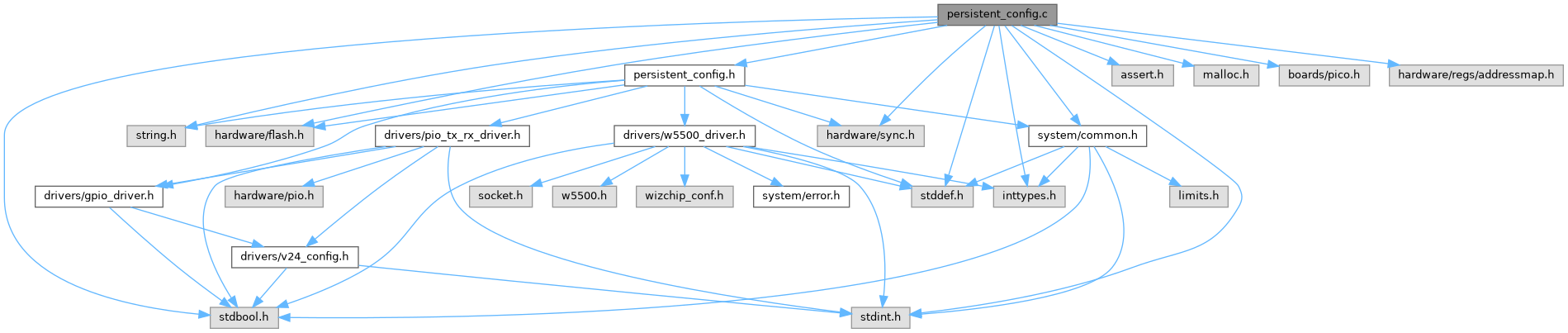

Include dependency graph for persistent_config.c:

Go to the source code of this file.

Macros
#define	FLASH_TARGET_OFFSET   (PICO_FLASH_SIZE_BYTES - FLASH_SECTOR_SIZE)
#define	CONFIG_MAGIC   0xCAFEBABE
#define	BYTES_PER_KIBIBYTE   1024U
#define	RAM_TOTAL_KIBIBYTES   264U
#define	RAM_BASE_ADDRESS   0x20000000U
#define	W55RP20_FLASH_TOTAL_BYTES   (2U * BYTES_PER_KIBIBYTE * BYTES_PER_KIBIBYTE)

Functions
void	print_memory_usage (void)
	Print RAM usage statistics.
void	print_flash_usage (void)
	Print flash usage statistics.
static const config_t *	nonsafe_config_read (void)
bool	config_read (config_t *cfg)
	Read configuration from flash.
void	config_wipe (void)
	Erase persistent configuration sector.
bool	config_is_valid (void)
	Check if flash configuration magic marker is valid.
void	dump_config (void)
	Print current configuration to console/log output.
void	config_write (const config_t *cfg)
	Write configuration to flash.

Macro Definition Documentation

BYTES_PER_KIBIBYTE

#define BYTES_PER_KIBIBYTE   1024U

Definition at line 39 of file persistent_config.c.

CONFIG_MAGIC

#define CONFIG_MAGIC   0xCAFEBABE

Definition at line 38 of file persistent_config.c.

FLASH_TARGET_OFFSET

#define FLASH_TARGET_OFFSET   (PICO_FLASH_SIZE_BYTES - FLASH_SECTOR_SIZE)

Definition at line 36 of file persistent_config.c.

RAM_BASE_ADDRESS

#define RAM_BASE_ADDRESS   0x20000000U

Definition at line 41 of file persistent_config.c.

RAM_TOTAL_KIBIBYTES

#define RAM_TOTAL_KIBIBYTES   264U

Definition at line 40 of file persistent_config.c.

W55RP20_FLASH_TOTAL_BYTES

#define W55RP20_FLASH_TOTAL_BYTES   (2U * BYTES_PER_KIBIBYTE * BYTES_PER_KIBIBYTE)

Definition at line 42 of file persistent_config.c.

Function Documentation

config_is_valid()

bool config_is_valid

(

void

)

Check if flash configuration magic marker is valid.

Returns

true when stored configuration is valid.

Definition at line 123 of file persistent_config.c.

References CONFIG_MAGIC, config_t::magic, and nonsafe_config_read().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

config_read()

bool config_read

(

config_t *

cfg

)

Read configuration from flash.

Parameters

cfg	Destination object.

Returns

true when valid config was read.

Definition at line 103 of file persistent_config.c.

References CONFIG_MAGIC, config_t::magic, and nonsafe_config_read().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

config_wipe()

void config_wipe

(

void

)

Erase persistent configuration sector.

Definition at line 114 of file persistent_config.c.

References FLASH_TARGET_OFFSET.

Referenced by event_dispatch().

Here is the caller graph for this function:

config_write()

void config_write

(

const config_t *

cfg

)

Write configuration to flash.

Parameters

cfg	Source config object.

Definition at line 177 of file persistent_config.c.

References CONFIG_MAGIC, FLASH_TARGET_OFFSET, and config_t::magic.

Referenced by event_dispatch().

Here is the caller graph for this function:

dump_config()

void dump_config

(

void

)

Print current configuration to console/log output.

Definition at line 129 of file persistent_config.c.

References V24_CONFIG_T::baudrate, NETWORK_CONFIG_T::broadcast_address, CONFIG_MAGIC, V24_TX_POLARITIES_T::cts_inverted, V24_RX_POLARITIES_T::dcd_inverted, V24_TX_POLARITIES_T::dtr_inverted, UDP_CONFIG_T::ip_address, config_t::local_config, LOG_INFO, config_t::magic, config_t::net_config, NETWORK_CONFIG_T::net_info, nonsafe_config_read(), V24_CONFIG_T::polarities, UDP_CONFIG_T::port, PRIu32, PRIX32, config_t::remote_config, V24_TX_POLARITIES_T::rts_inverted, V24_POLARITIES_T::rx_polarities, V24_RX_POLARITIES_T::rxc_inverted, V24_RX_POLARITIES_T::rxd_inverted, V24_POLARITIES_T::tx_polarities, V24_TX_POLARITIES_T::txc_inverted, V24_TX_POLARITIES_T::txd_inverted, config_t::v24_config, and config_t::version.

Referenced by event_dispatch(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

nonsafe_config_read()

static const config_t * nonsafe_config_read ( void  )

static

Definition at line 98 of file persistent_config.c.

References FLASH_TARGET_OFFSET.

Referenced by config_is_valid(), config_read(), and dump_config().

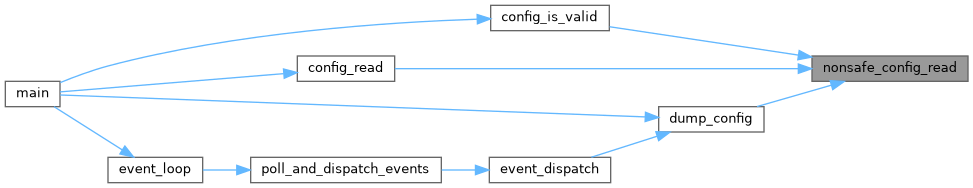

Here is the caller graph for this function:

print_flash_usage()

void print_flash_usage

(

void

)

Print flash usage statistics.

Definition at line 78 of file persistent_config.c.

References BYTES_PER_KIBIBYTE, LOG_PLAIN, PRIu32, and W55RP20_FLASH_TOTAL_BYTES.

Referenced by event_dispatch().

Here is the caller graph for this function:

print_memory_usage()

void print_memory_usage

(

void

)

Print RAM usage statistics.

Definition at line 44 of file persistent_config.c.

References BYTES_PER_KIBIBYTE, LOG_PLAIN, PRIu32, RAM_BASE_ADDRESS, and RAM_TOTAL_KIBIBYTES.

Referenced by event_dispatch().

Here is the caller graph for this function:
