Persistent configuration blob stored in flash. More...
#include <persistent_config.h>

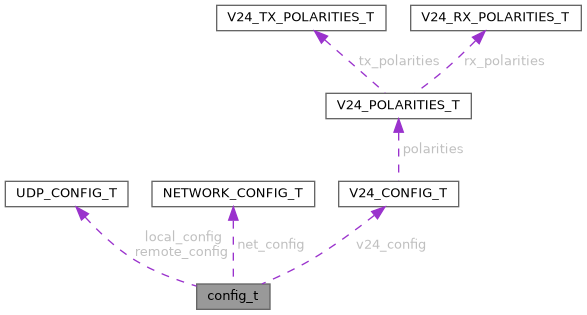

Data Fields | |
| uint32_t | magic |
| uint32_t | version |
| UDP_CONFIG_T | local_config |
| UDP_CONFIG_T | remote_config |
| NETWORK_CONFIG_T | net_config |
| V24_CONFIG_T | v24_config |
| log_level_t | log_level |
Detailed Description
Persistent configuration blob stored in flash.
Definition at line 36 of file persistent_config.h.
Field Documentation
◆ local_config
| UDP_CONFIG_T config_t::local_config |
Local UDP endpoint.
Definition at line 43 of file persistent_config.h.
Referenced by dump_config(), event_dispatch(), and init_app().
◆ log_level
| log_level_t config_t::log_level |
Default runtime log level.
Definition at line 51 of file persistent_config.h.
Referenced by event_dispatch(), and init_app().
◆ magic
| uint32_t config_t::magic |
Magic marker to validate flash content.
Definition at line 39 of file persistent_config.h.
Referenced by config_is_valid(), config_read(), config_write(), and dump_config().
◆ net_config
| NETWORK_CONFIG_T config_t::net_config |
Network interface configuration.
Definition at line 47 of file persistent_config.h.
Referenced by dump_config(), event_dispatch(), and init_app().
◆ remote_config
| UDP_CONFIG_T config_t::remote_config |
Remote UDP endpoint.
Definition at line 45 of file persistent_config.h.
Referenced by dump_config(), event_dispatch(), and init_app().
◆ v24_config
| V24_CONFIG_T config_t::v24_config |
V.24 line/baud configuration.
Definition at line 49 of file persistent_config.h.
Referenced by dump_config(), event_dispatch(), and init_app().
◆ version
| uint32_t config_t::version |
Schema version for migration support.
Definition at line 41 of file persistent_config.h.
Referenced by dump_config().
The documentation for this struct was generated from the following file:
