app_context.h File Reference

#include <inttypes.h>
#include <stdint.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include "pico/stdio.h"
#include "pico/time.h"
#include "drivers/pio_tx_rx_driver.h"
#include "drivers/tx_queue.h"
#include "drivers/w5500_driver.h"
#include "platform/pinmap.h"
#include "protocol/hdlc_common.h"
#include "protocol/hdlc_decoder.h"
#include "protocol/hdlc_sync.h"
#include "system/baudrate_monitor.h"
#include "system/cli_commands.h"
#include "system/cli_usb_cdc.h"
#include "system/common.h"
#include "system/event_queue.h"
#include "system/persistent_config.h"

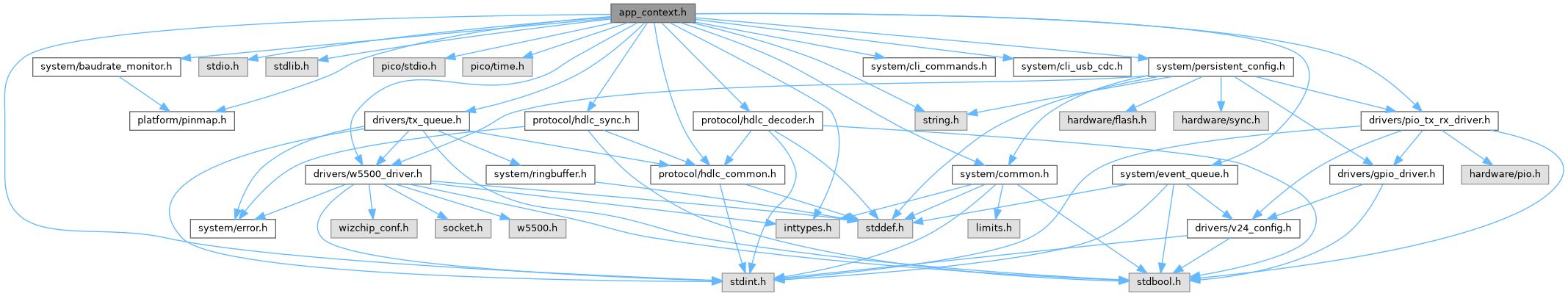

Include dependency graph for app_context.h:

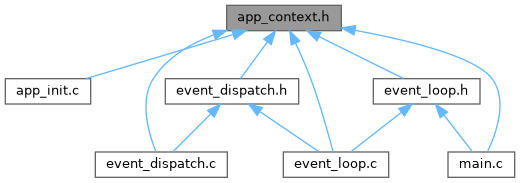

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	payload_statistics_t
	Runtime pipeline statistics and counters. More...
struct	app_ctx_t
	Global application context shared across modules. More...

Functions
void	init_app (app_ctx_t *app, const config_t *persistent_config)
	Initialize application context from persistent/default configuration.
app_ctx_t *	get_app_ctx (void)
	Get access to the app context. This context is owned by main, app_init just takes hold of a pointer to it.

Function Documentation

get_app_ctx()

app_ctx_t * get_app_ctx

(

void

)

Get access to the app context. This context is owned by main, app_init just takes hold of a pointer to it.

Returns

Pointer to the app context.

Definition at line 34 of file app_init.c.

References app_ctx.

init_app()

void init_app	(	app_ctx_t *	app,
		const config_t *	persistent_config
	)

Initialize application context from persistent/default configuration.

Parameters

app	Application context to initialize.
persistent_config	Source configuration (used when marked valid).

Definition at line 39 of file app_init.c.

References app_ctx_t::accumulator, app_ctx, V24_CONFIG_T::baudrate, NETWORK_CONFIG_T::broadcast_address, app_ctx_t::config_valid, DEFAULT_IP_ADDR, DEFAULT_UDP_PORT, app_ctx_t::destination_config, V24_CONFIG_T::external_clock, HDLC_FLAG_BYTE, hdlc_sync_acc_init(), init_v24_config(), UDP_CONFIG_T::ip_address, UDP_FRAME_T::length, app_ctx_t::local_config, config_t::local_config, config_t::log_level, LOG_LEVEL_DEBUG, app_ctx_t::need_prompt, app_ctx_t::net_config, config_t::net_config, UDP_FRAME_T::payload, HDLC_FRAME_T::payload, app_ctx_t::persistent_config, UDP_CONFIG_T::port, app_ctx_t::reconstructed_frame, app_ctx_t::reconstructed_frame_buffer, reinit_v24_config(), config_t::remote_config, app_ctx_t::rx_frame_buffer, app_ctx_t::rx_frame_buffer_data, set_loglevel(), app_ctx_t::stats, app_ctx_t::tx_frame_buffer, app_ctx_t::tx_frame_buffer_data, V24_BAUD_9600, app_ctx_t::v24_config, config_t::v24_config, w5500_set_network(), and w5500_set_network_defaults().

Referenced by main().

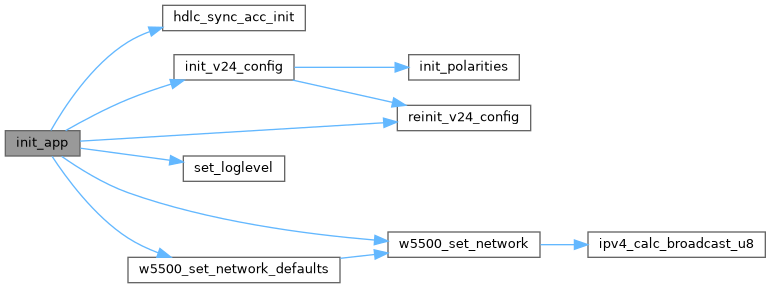

Here is the call graph for this function:

Here is the caller graph for this function:
