w5500_driver.h File Reference
#include <inttypes.h>
#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>
#include "socket.h"
#include "w5500.h"
#include "wizchip_conf.h"
#include "system/error.h"

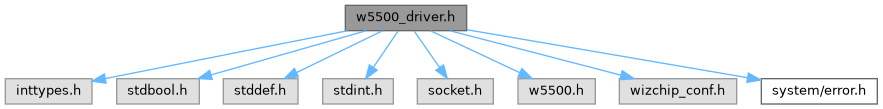

Include dependency graph for w5500_driver.h:

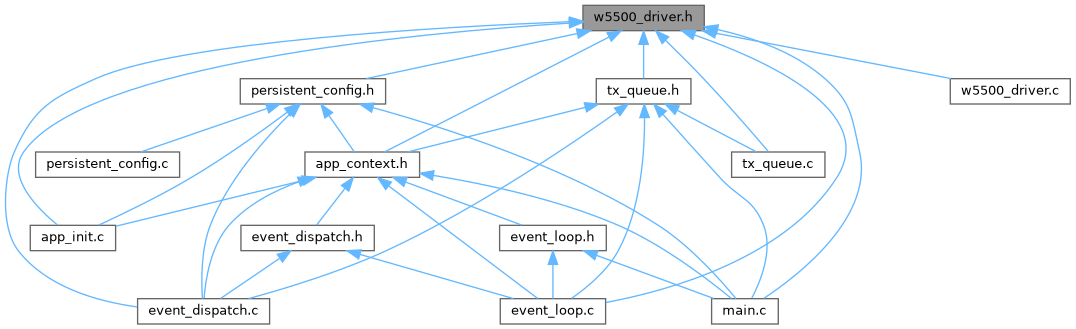

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures

struct  NETWORK_CONFIG_T
 Network configuration wrapper used by the W5500 driver. More...

struct  UDP_CONFIG_T
 UDP endpoint configuration. More...

struct  UDP_FRAME_T
 UDP payload container. More...


Macros

Default Network Settings
#define DEFAULT_MAC_ADDR   {0x00, 0x08, 0xDC, 0x12, 0x34, 0x56}

#define DEFAULT_IP_ADDR   {192, 168, 29, 20}

#define DEFAULT_SUBNET_MASK   {255, 255, 255, 0}

#define DEFAULT_GATEWAY_ADDR   {192, 168, 29, 1}

#define DEFAULT_DNS_ADDR   {8, 8, 8, 8}

#define DEFAULT_UDP_PORT   6969

#define RX_BUF_SIZE   8192

#define TX_BUF_SIZE   8192


Functions

void w5500_debug_status (void)
 Print W5500 socket/PHY debug status.

void w5500_udp_tx (UDP_CONFIG_T *send_config, const UDP_FRAME_T *frame)
 Send one UDP frame through W5500.

bool w5500_poll_rx (UDP_CONFIG_T *send_config, UDP_FRAME_T *frame)
 Poll W5500 for received UDP data.

e2s_error_t w5500_open_udp_socket (UDP_CONFIG_T *config)
 Open configured UDP socket.

e2s_error_t w5500_reconfigure_udp_socket (UDP_CONFIG_T *config)
 Reconfigure UDP socket with new endpoint settings.

e2s_error_t w5500_open_ipraw_socket (void)
 Open IPRAW socket mode.

void w5500_set_network_defaults (NETWORK_CONFIG_T *config)
 Fill network config with compile-time defaults.

void w5500_set_network (NETWORK_CONFIG_T *config)
 Apply network configuration to W5500 hardware.

void w5500_driver_init (void)
 Initialize W5500 driver and low-level interface.

void w5500_poll_udp_buffer_full_events (uint64_t *rx_full_enter_events, uint64_t *tx_full_enter_events)


Macro Definition Documentation

◆ DEFAULT_DNS_ADDR

#define DEFAULT_DNS_ADDR   {8, 8, 8, 8}

Definition at line 40 of file w5500_driver.h.

◆ DEFAULT_GATEWAY_ADDR

#define DEFAULT_GATEWAY_ADDR   {192, 168, 29, 1}

Definition at line 39 of file w5500_driver.h.

◆ DEFAULT_IP_ADDR

#define DEFAULT_IP_ADDR   {192, 168, 29, 20}

Definition at line 37 of file w5500_driver.h.

◆ DEFAULT_MAC_ADDR

#define DEFAULT_MAC_ADDR   {0x00, 0x08, 0xDC, 0x12, 0x34, 0x56}

Definition at line 36 of file w5500_driver.h.

◆ DEFAULT_SUBNET_MASK

#define DEFAULT_SUBNET_MASK   {255, 255, 255, 0}

Definition at line 38 of file w5500_driver.h.

◆ DEFAULT_UDP_PORT

#define DEFAULT_UDP_PORT   6969

Definition at line 41 of file w5500_driver.h.

◆ RX_BUF_SIZE

#define RX_BUF_SIZE   8192

Definition at line 42 of file w5500_driver.h.

◆ TX_BUF_SIZE

#define TX_BUF_SIZE   8192

Definition at line 43 of file w5500_driver.h.

Function Documentation

◆ w5500_debug_status()

void w5500_debug_status ( void  )

Print W5500 socket/PHY debug status.

Definition at line 96 of file w5500_driver.c.

References IP_SOCKET, and LOG_DEBUG.

Referenced by main().

Here is the caller graph for this function:

◆ w5500_driver_init()

void w5500_driver_init ( void  )

Initialize W5500 driver and low-level interface.

Definition at line 226 of file w5500_driver.c.

References E2S_ERR_W5500_INIT_FAILED, E2S_OK, fatal_panic(), LOG_DEBUG, and w5500_apply_socket_mem_map().

Referenced by main().

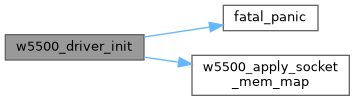

Here is the call graph for this function:
Here is the caller graph for this function:

◆ w5500_open_ipraw_socket()

e2s_error_t w5500_open_ipraw_socket ( void  )

Open IPRAW socket mode.

Returns
E2S_OK on success, error code otherwise.

Definition at line 149 of file w5500_driver.c.

References E2S_ERR_W5500_SOCKET_OPEN_FAILED, E2S_OK, IP_SOCKET, LOG_DEBUG, and LOG_ERROR.

◆ w5500_open_udp_socket()

e2s_error_t w5500_open_udp_socket ( UDP_CONFIG_T *  config)

Open configured UDP socket.

Parameters
send_configLocal endpoint settings.
Returns
E2S_OK on success, error code otherwise.

Definition at line 161 of file w5500_driver.c.

References E2S_ERR_W5500_SOCKET_OPEN_FAILED, E2S_OK, LOG_DEBUG, LOG_ERROR, UDP_CONFIG_T::port, and UDP_SOCKET.

Referenced by main(), and w5500_reconfigure_udp_socket().

Here is the caller graph for this function:

◆ w5500_poll_rx()

bool w5500_poll_rx ( UDP_CONFIG_T *  send_config,
UDP_FRAME_T *  frame
)

Poll W5500 for received UDP data.

Parameters
send_configSource endpoint output (updated with sender info).
frameDestination frame buffer for received payload.
Returns
true if a frame was received, false otherwise.

Definition at line 119 of file w5500_driver.c.

References UDP_CONFIG_T::ip_address, UDP_FRAME_T::length, LOG_DEBUG, UDP_FRAME_T::payload, UDP_CONFIG_T::port, RX_BUF_SIZE, and UDP_SOCKET.

Referenced by poll_and_enqueue_udp_rx().

Here is the caller graph for this function:

◆ w5500_poll_udp_buffer_full_events()

void w5500_poll_udp_buffer_full_events ( uint64_t *  rx_full_enter_events,
uint64_t *  tx_full_enter_events
)

Definition at line 43 of file w5500_driver.c.

References UDP_RX_REQUIRED_BYTES, and UDP_SOCKET.

Referenced by event_loop().

Here is the caller graph for this function:

◆ w5500_reconfigure_udp_socket()

e2s_error_t w5500_reconfigure_udp_socket ( UDP_CONFIG_T *  config)

Reconfigure UDP socket with new endpoint settings.

Parameters
configLocal endpoint settings.
Returns
E2S_OK on success, error code otherwise.

Definition at line 177 of file w5500_driver.c.

References LOG_DEBUG, UDP_SOCKET, and w5500_open_udp_socket().

Referenced by ev_set_net_settings().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ w5500_set_network()

void w5500_set_network ( NETWORK_CONFIG_T *  config)

Apply network configuration to W5500 hardware.

Parameters
configSource config object.

Definition at line 184 of file w5500_driver.c.

References NETWORK_CONFIG_T::broadcast_address, ipv4_calc_broadcast_u8(), LOG_DEBUG, and NETWORK_CONFIG_T::net_info.

Referenced by init_app(), and w5500_set_network_defaults().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ w5500_set_network_defaults()

void w5500_set_network_defaults ( NETWORK_CONFIG_T *  config)

Fill network config with compile-time defaults.

Parameters
configDestination config object.

Definition at line 213 of file w5500_driver.c.

References DEFAULT_DNS_ADDR, DEFAULT_GATEWAY_ADDR, DEFAULT_IP_ADDR, DEFAULT_MAC_ADDR, DEFAULT_SUBNET_MASK, NETWORK_CONFIG_T::net_info, and w5500_set_network().

Referenced by init_app().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ w5500_udp_tx()

void w5500_udp_tx ( UDP_CONFIG_T *  send_config,
const UDP_FRAME_T *  frame
)

Send one UDP frame through W5500.

Parameters
send_configDestination endpoint.
frameFrame payload to send.

Definition at line 106 of file w5500_driver.c.

References UDP_CONFIG_T::ip_address, UDP_FRAME_T::length, LOG_DEBUG, UDP_FRAME_T::payload, UDP_CONFIG_T::port, and UDP_SOCKET.

Referenced by decode_hdlc_to_udp_tx(), and event_dispatch().
