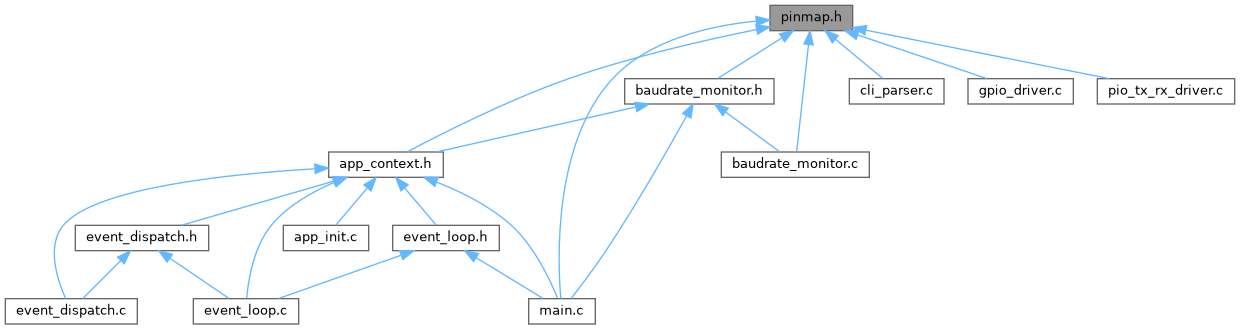

This graph shows which files directly or indirectly include this file:

Macros
V.24 Pin Mapping
#define	V24_TXC_DCE 0

#define	V24_RXC 4

#define	V24_TXC_DTE 5

#define	V24_DCD 9

#define	V24_DSR 10

#define	V24_CTS 11

#define	V24_RXD 12

#define	V24_RTS 13

#define	V24_TXD 14

#define	V24_DTR 15

#define	V24_TX_ACTIVE 1

#define	V24_STATUS_LED 25

Enumerations
enum	V24_PIN_T { V24_TXC_DCE_T = V24_TXC_DCE , V24_RXC_T = V24_RXC , V24_TXC_DTE_T = V24_TXC_DTE , V24_DCD_T = V24_DCD , V24_DSR_T = V24_DSR , V24_CTS_T = V24_CTS , V24_RXD_T = V24_RXD , V24_RTS_T = V24_RTS , V24_TXD_T = V24_TXD , V24_DTR_T = V24_DTR , V24_TX_ACTIVE_T = V24_TX_ACTIVE , V24_STATUS_LED_T = V24_STATUS_LED }
	Typed aliases for V.24 GPIO assignments. More...

Macro Definition Documentation

◆ V24_CTS

#define V24_CTS 11

Definition at line 32 of file pinmap.h.

◆ V24_DCD

#define V24_DCD 9

Definition at line 30 of file pinmap.h.

◆ V24_DSR

#define V24_DSR 10

Definition at line 31 of file pinmap.h.

◆ V24_DTR

#define V24_DTR 15

Definition at line 37 of file pinmap.h.

◆ V24_RTS

#define V24_RTS 13

Definition at line 34 of file pinmap.h.

◆ V24_RXC

#define V24_RXC 4

Definition at line 28 of file pinmap.h.

◆ V24_RXD

#define V24_RXD 12

Definition at line 33 of file pinmap.h.

◆ V24_STATUS_LED

#define V24_STATUS_LED 25

Definition at line 39 of file pinmap.h.

◆ V24_TX_ACTIVE

#define V24_TX_ACTIVE 1

Definition at line 38 of file pinmap.h.

◆ V24_TXC_DCE

#define V24_TXC_DCE 0

Definition at line 27 of file pinmap.h.

◆ V24_TXC_DTE

#define V24_TXC_DTE 5

Definition at line 29 of file pinmap.h.

◆ V24_TXD

#define V24_TXD 14

Definition at line 35 of file pinmap.h.

Enumeration Type Documentation

◆ V24_PIN_T

enum V24_PIN_T

Typed aliases for V.24 GPIO assignments.

Enumerator
V24_TXC_DCE_T
V24_RXC_T
V24_TXC_DTE_T
V24_DCD_T
V24_DSR_T
V24_CTS_T
V24_RXD_T
V24_RTS_T
V24_TXD_T
V24_DTR_T
V24_TX_ACTIVE_T
V24_STATUS_LED_T

Definition at line 45 of file pinmap.h.
