#include "system/app_context.h"
#include <stdbool.h>
#include <stdio.h>
#include "hardware/gpio.h"
#include "hardware/pio.h"
#include "hardware/sync.h"
#include "hardware/watchdog.h"
#include "pico/multicore.h"
#include "pico/stdio.h"
#include "pico/time.h"
#include "drivers/gpio_driver.h"
#include "drivers/pio_tx_rx_driver.h"
#include "drivers/tx_queue.h"
#include "drivers/w5500_driver.h"
#include "platform/pinmap.h"
#include "system/baudrate_monitor.h"
#include "system/common.h"
#include "system/error.h"
#include "system/event_loop.h"
#include "system/event_queue.h"
#include "system/persistent_config.h"
#include "version.h"

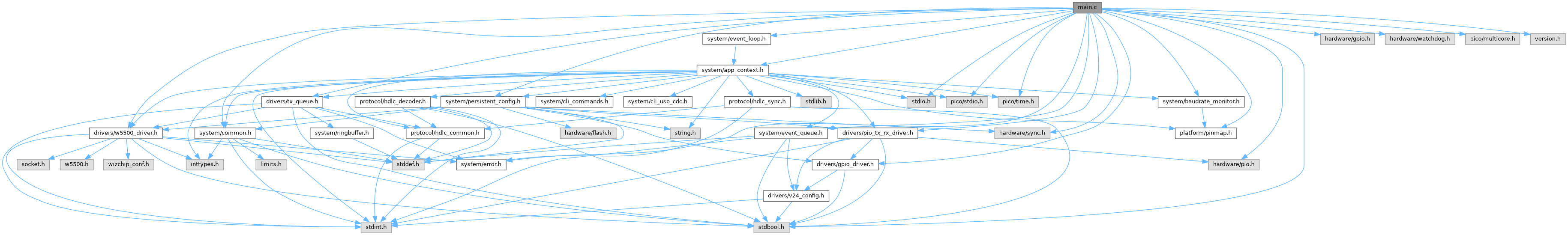

Include dependency graph for main.c:

Macros
#define	USB_ENUMERATION_DELAY_MS 1500

#define	GLOBAL_WATCHDOG_TIMEOUT_MS 5000

#define	WATCHDOG_DISABLED_FOR_DEBUGGING 1

Functions
static void	core1_entry (void)

int	main (void)

Macro Definition Documentation

◆ GLOBAL_WATCHDOG_TIMEOUT_MS

#define GLOBAL_WATCHDOG_TIMEOUT_MS 5000

Definition at line 55 of file main.c.

◆ USB_ENUMERATION_DELAY_MS

#define USB_ENUMERATION_DELAY_MS 1500

Definition at line 54 of file main.c.

◆ WATCHDOG_DISABLED_FOR_DEBUGGING

#define WATCHDOG_DISABLED_FOR_DEBUGGING 1

Definition at line 56 of file main.c.

Function Documentation

◆ core1_entry()

static void core1_entry ( void )

static

Definition at line 58 of file main.c.

References log_core1_drain().

Referenced by main().

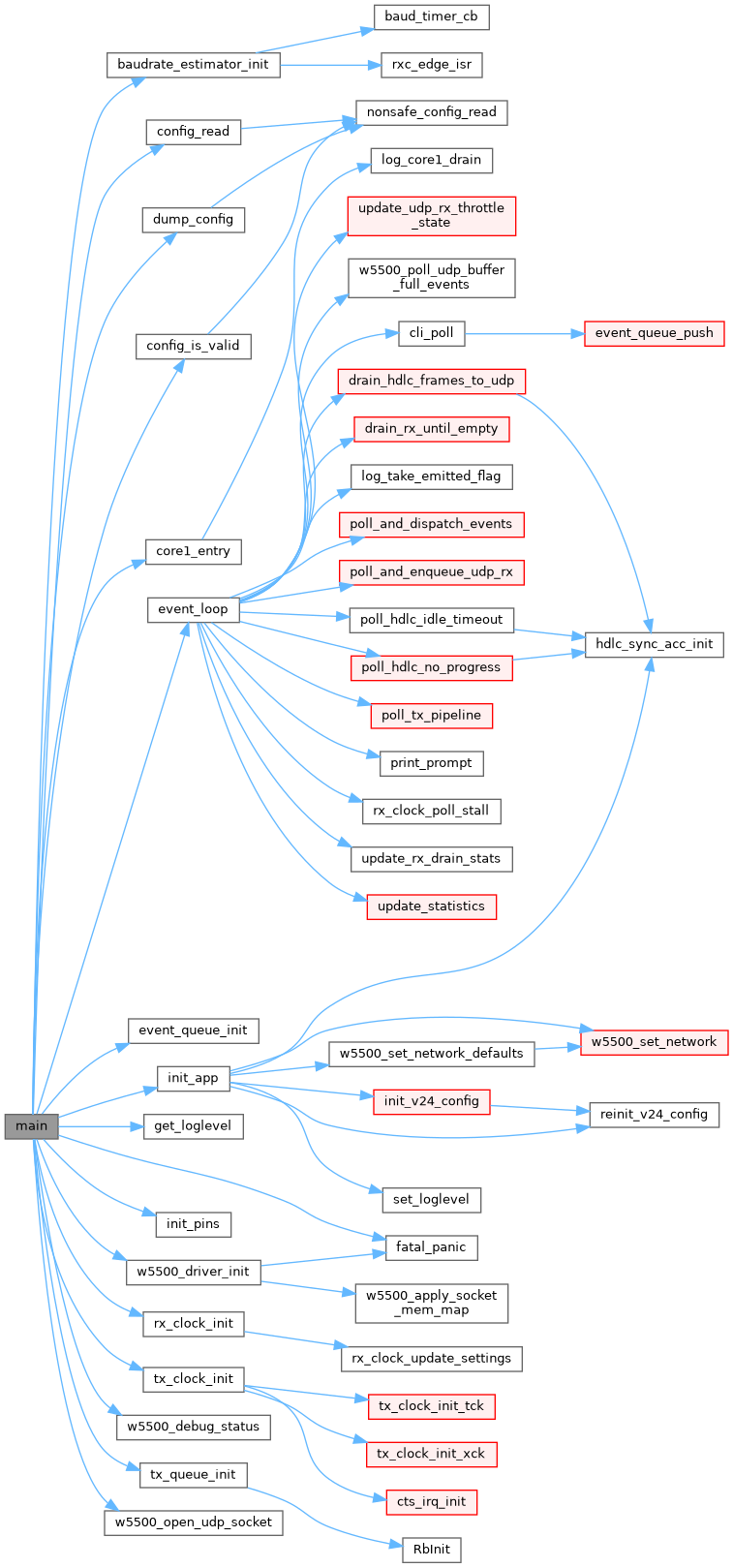

Here is the call graph for this function:

Here is the caller graph for this function:

◆ main()

int main ( void )

Definition at line 70 of file main.c.

References baudrate_estimator_init(), config_is_valid(), config_read(), app_ctx_t::config_valid, core1_entry(), dump_config(), E2S_OK, event_loop(), event_queue_init(), V24_CONFIG_T::external_clock, fatal_panic(), get_loglevel(), GLOBAL_WATCHDOG_TIMEOUT_MS, init_app(), init_pins(), app_ctx_t::local_config, LOG_LEVEL_DEBUG, LOG_PLAIN, app_ctx_t::need_prompt, V24_CONFIG_T::polarities, rx_clock_init(), V24_POLARITIES_T::rx_polarities, tx_clock_init(), app_ctx_t::tx_queue, app_ctx_t::tx_queue_buffer, tx_queue_init(), USB_ENUMERATION_DELAY_MS, app_ctx_t::v24_config, V24_DTR, V24_RXC, V24_TXC_DCE, w5500_debug_status(), w5500_driver_init(), w5500_open_udp_socket(), and WATCHDOG_DISABLED_FOR_DEBUGGING.
