hdlc_encoder.h File Reference

#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>
#include "hdlc_common.h"

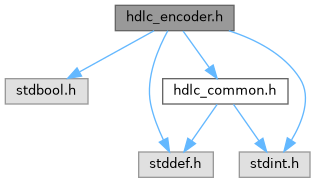

Include dependency graph for hdlc_encoder.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
bool	hdlc_encode (const uint8_t *payload, const size_t payload_length, HDLC_FRAME_T *frame, bool lsb_first)
	Encode payload into an HDLC bit-stuffed frame.
bool	hdlc_encode_byte (const uint8_t *payload, const size_t payload_length, HDLC_FRAME_T *frame)
	Encode payload using byte-escaping HDLC compatibility path.

Function Documentation

hdlc_encode()

bool hdlc_encode	(	const uint8_t *	payload,
		const size_t	payload_length,
		HDLC_FRAME_T *	frame,
		bool	lsb_first
	)

Encode payload into an HDLC bit-stuffed frame.

Parameters

payload	Input payload bytes.
payload_length	Number of payload bytes.
frame	Output frame descriptor and storage.
lsb_first	Bit order selector for bit-wise encoding.

Returns

true on success, false on invalid args or capacity overflow.

Definition at line 171 of file hdlc_encoder.c.

References HDLC_FRAME_T::capacity, ENCODER_ZERO_PAD_AND_DRAIN, hdlc_crc16(), HDLC_FLAG_BYTE, hdlc_put_byte(), HDLC_TRY_PUT_BYTE, HDLC_FRAME_T::length, LOG_DEBUG, hdlc_encoder_t::out_byte, and HDLC_FRAME_T::payload.

Referenced by tx_queue_enqueue_udp_frame().

Here is the call graph for this function:

Here is the caller graph for this function:

hdlc_encode_byte()

bool hdlc_encode_byte	(	const uint8_t *	payload,
		const size_t	payload_length,
		HDLC_FRAME_T *	frame
	)

Encode payload using byte-escaping HDLC compatibility path.

Parameters

payload	Input payload bytes.
payload_length	Number of payload bytes.
frame	Output frame descriptor and storage.

Returns

true on success, false on invalid args or capacity overflow.

Definition at line 57 of file hdlc_encoder.c.

References HDLC_FRAME_T::capacity, hdlc_crc16(), hdlc_escape_if_needed(), HDLC_FLAG_BYTE, HDLC_TRY_PUT_BYTE, HDLC_FRAME_T::length, LOG_DEBUG, and HDLC_FRAME_T::payload.

Here is the call graph for this function:
