hdlc_decoder.h File Reference

#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>
#include "hdlc_common.h"

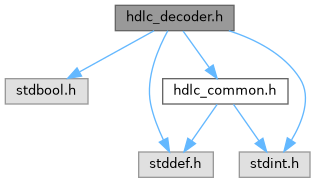

Include dependency graph for hdlc_decoder.h:

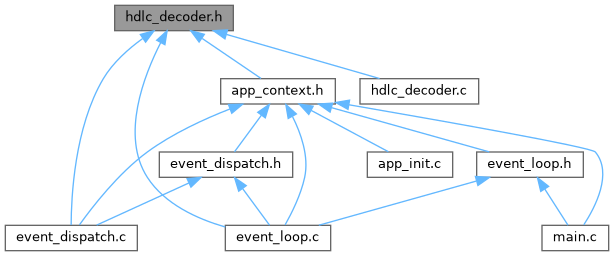

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	hdlc_decode_stats_t
	Cumulative HDLC decode failure reason counters. More...

Functions
bool	hdlc_decode (const HDLC_FRAME_T *frame, uint8_t *payload, const size_t out_capacity, size_t *payload_length, bool lsb_first)
	Decode an HDLC bit-stuffed frame.
bool	hdlc_decode_byte (const HDLC_FRAME_T *frame, uint8_t *payload, const size_t out_capacity, size_t *payload_length)
	Decode a byte-escaped HDLC frame compatibility path.
void	hdlc_decode_stats_snapshot (hdlc_decode_stats_t *out_stats)
	Copy cumulative HDLC decode statistics.
void	hdlc_decode_stats_reset (void)
	Reset cumulative HDLC decode statistics.

Function Documentation

hdlc_decode()

bool hdlc_decode	(	const HDLC_FRAME_T *	frame,
		uint8_t *	payload,
		const size_t	out_capacity,
		size_t *	payload_length,
		bool	lsb_first
	)

Decode an HDLC bit-stuffed frame.

Parameters

frame	Input HDLC frame.
payload	Output payload buffer.
out_capacity	Capacity of payload in bytes.
payload_length	Output payload length.
lsb_first	Bit order selector matching encoder/PIO path.

Returns

true on successful decode and CRC validation.

Definition at line 171 of file hdlc_decoder.c.

References hdlc_decode_stats_t::crc_mismatch, HDLC_BIT_EOF, HDLC_BIT_ERR, hdlc_crc16(), hdlc_decode_stats, HDLC_FLAG_BYTE, hdlc_get_byte(), hdlc_decode_stats_t::invalid_frame, HDLC_FRAME_T::length, LOG_DEBUG, HDLC_FRAME_T::payload, hdlc_decode_stats_t::payload_too_long, hdlc_decoder_t::raw_bit_index, hdlc_decode_stats_t::too_short, and hdlc_decode_stats_t::unstuff_error.

Referenced by decode_hdlc_to_udp_tx(), and event_dispatch().

Here is the call graph for this function:

Here is the caller graph for this function:

hdlc_decode_byte()

bool hdlc_decode_byte	(	const HDLC_FRAME_T *	frame,
		uint8_t *	payload,
		const size_t	out_capacity,
		size_t *	payload_length
	)

Decode a byte-escaped HDLC frame compatibility path.

Parameters

frame	Input HDLC frame.
payload	Output payload buffer.
out_capacity	Capacity of payload in bytes.
payload_length	Output payload length.

Returns

true on successful decode and CRC validation.

Definition at line 45 of file hdlc_decoder.c.

References hdlc_decode_stats_t::crc_mismatch, hdlc_crc16(), hdlc_decode_stats, HDLC_ESCAPE_BYTE, HDLC_ESCAPE_XOR, HDLC_FLAG_BYTE, hdlc_decode_stats_t::invalid_frame, HDLC_FRAME_T::length, LOG_DEBUG, HDLC_FRAME_T::payload, hdlc_decode_stats_t::payload_too_long, and hdlc_decode_stats_t::too_short.

Here is the call graph for this function:

hdlc_decode_stats_reset()

void hdlc_decode_stats_reset

(

void

)

Reset cumulative HDLC decode statistics.

Definition at line 246 of file hdlc_decoder.c.

References hdlc_decode_stats.

hdlc_decode_stats_snapshot()

void hdlc_decode_stats_snapshot

(

hdlc_decode_stats_t *

out_stats

)

Copy cumulative HDLC decode statistics.

Parameters

out_stats

Destination pointer.

Definition at line 237 of file hdlc_decoder.c.

References hdlc_decode_stats.

Referenced by update_statistics().

Here is the caller graph for this function:
