event_queue.c File Reference

#include "event_queue.h"
#include <stdbool.h>
#include <stdint.h>
#include <string.h>

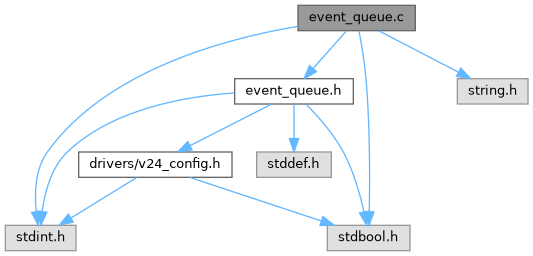

Include dependency graph for event_queue.c:

Go to the source code of this file.

Functions
static uint8_t	event_queue_count_internal (void)
void	event_queue_init (void)
	Initialize the event queue storage.
bool	event_queue_push (const event_t *event_entry)
	Enqueue an event.
bool	event_queue_pop (event_t *event_out)
	Dequeue an event.
bool	event_queue_is_empty (void)
	Check whether the queue is empty.
bool	event_queue_is_full (void)
	Check whether the queue is full.
size_t	event_queue_get_count (void)
	Get current number of queued events.
size_t	event_queue_get_high_water_mark (void)
	Get peak queue fill count observed since init.
uint32_t	event_queue_get_push_drop_count (void)
	Get cumulative number of dropped push attempts.
bool	event_get_payload_ptr (const event_t *event, size_t required_size, const void **out)
	Resolve payload pointer and validate minimum payload size.

Variables
static event_t	event_queue [EVENT_QUEUE_CAPACITY]
static uint8_t	event_queue_write = 0
static uint8_t	event_queue_read = 0
static uint8_t	event_queue_high_water_mark = 0
static uint32_t	event_queue_push_drops = 0

Function Documentation

event_get_payload_ptr()

bool event_get_payload_ptr	(	const event_t *	event,
		size_t	required_size,
		const void **	out
	)

Resolve payload pointer and validate minimum payload size.

Parameters

event	Event to inspect.
required_size	Minimum bytes required by caller.
out	Output pointer to payload bytes/object.

Returns

true when payload is valid and large enough.

Definition at line 104 of file event_queue.c.

References event_t::bytes, event_t::data, event_t::data_len, event_t::is_inline, and event_t::ptr.

Referenced by event_dispatch(), and print_net_settings_event().

Here is the caller graph for this function:

event_queue_count_internal()

static uint8_t event_queue_count_internal ( void  )

static

Definition at line 31 of file event_queue.c.

References EVENT_QUEUE_CAPACITY, event_queue_read, and event_queue_write.

Referenced by event_queue_get_count(), and event_queue_push().

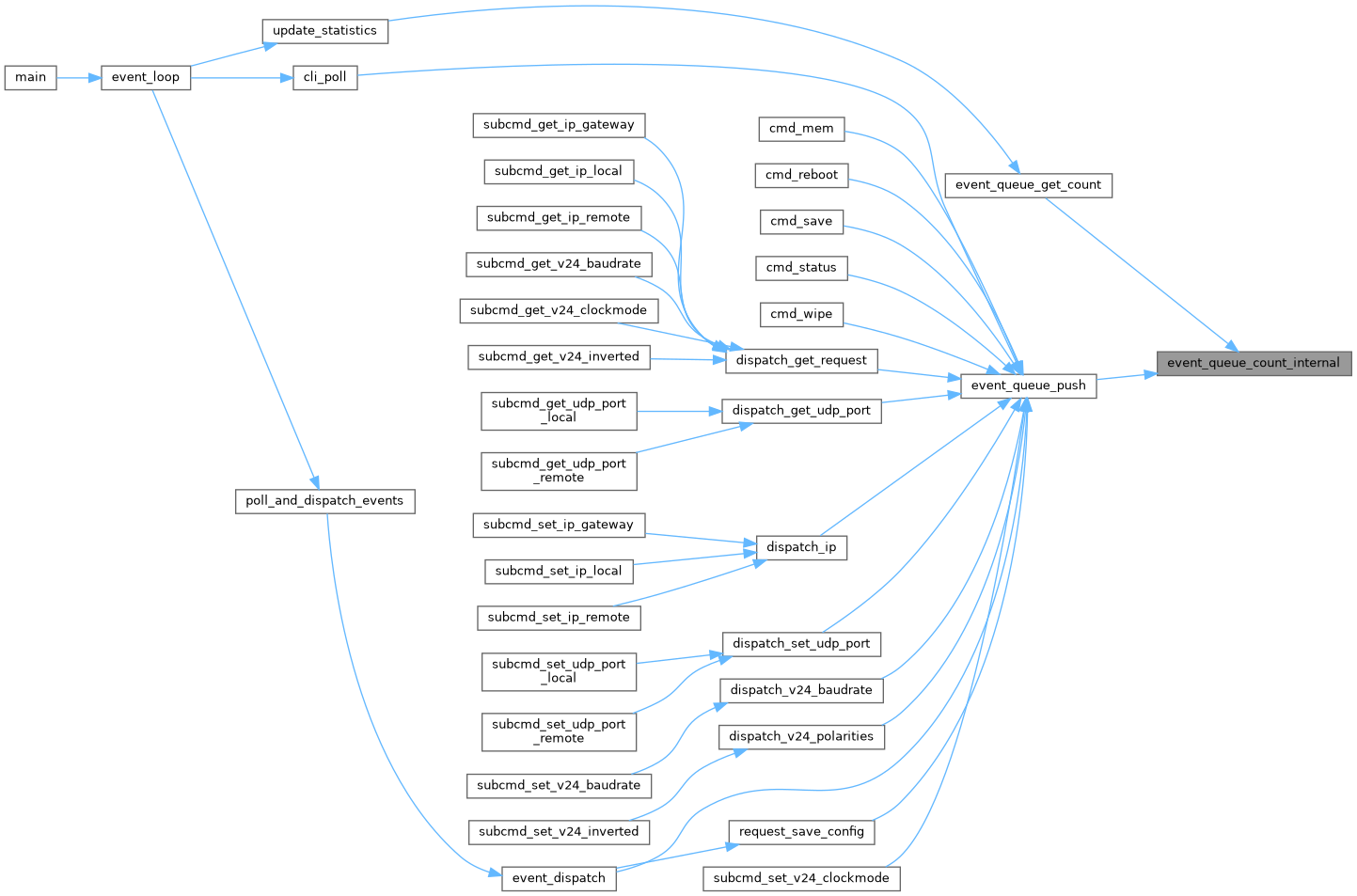

Here is the caller graph for this function:

event_queue_get_count()

size_t event_queue_get_count

(

void

)

Get current number of queued events.

Returns

Queue fill count.

Definition at line 89 of file event_queue.c.

References event_queue_count_internal().

Referenced by update_statistics().

Here is the call graph for this function:

Here is the caller graph for this function:

event_queue_get_high_water_mark()

size_t event_queue_get_high_water_mark

(

void

)

Get peak queue fill count observed since init.

Returns

High-water mark.

Definition at line 94 of file event_queue.c.

References event_queue_high_water_mark.

Referenced by update_statistics().

Here is the caller graph for this function:

event_queue_get_push_drop_count()

uint32_t event_queue_get_push_drop_count

(

void

)

Get cumulative number of dropped push attempts.

Returns

Drop counter.

Definition at line 99 of file event_queue.c.

References event_queue_push_drops.

Referenced by update_statistics().

Here is the caller graph for this function:

event_queue_init()

void event_queue_init

(

void

)

Initialize the event queue storage.

Definition at line 40 of file event_queue.c.

References event_queue, event_queue_high_water_mark, event_queue_push_drops, event_queue_read, and event_queue_write.

Referenced by main().

Here is the caller graph for this function:

event_queue_is_empty()

bool event_queue_is_empty

(

void

)

Check whether the queue is empty.

Definition at line 78 of file event_queue.c.

References event_queue_read, and event_queue_write.

event_queue_is_full()

bool event_queue_is_full

(

void

)

Check whether the queue is full.

Definition at line 83 of file event_queue.c.

References EVENT_QUEUE_CAPACITY, event_queue_read, and event_queue_write.

event_queue_pop()

bool event_queue_pop

(

event_t *

event_out

)

Dequeue an event.

Parameters

event_out

Destination for the popped event.

Returns

true if an event was popped, false if the queue was empty.

Definition at line 67 of file event_queue.c.

References event_queue, EVENT_QUEUE_CAPACITY, event_queue_read, and event_queue_write.

Referenced by poll_and_dispatch_events().

Here is the caller graph for this function:

event_queue_push()

bool event_queue_push

(

const event_t *

event_entry

)

Enqueue an event.

Parameters

event_entry

Event to push; payload pointer ownership stays with caller.

Returns

true if queued, false if the queue was full.

Definition at line 49 of file event_queue.c.

References event_queue, EVENT_QUEUE_CAPACITY, event_queue_count_internal(), event_queue_high_water_mark, event_queue_push_drops, event_queue_read, and event_queue_write.

Referenced by cli_poll(), cmd_mem(), cmd_reboot(), cmd_save(), cmd_status(), cmd_wipe(), dispatch_get_request(), dispatch_get_udp_port(), dispatch_ip(), dispatch_set_udp_port(), dispatch_v24_baudrate(), dispatch_v24_polarities(), event_dispatch(), request_save_config(), and subcmd_set_v24_clockmode().

Here is the call graph for this function:

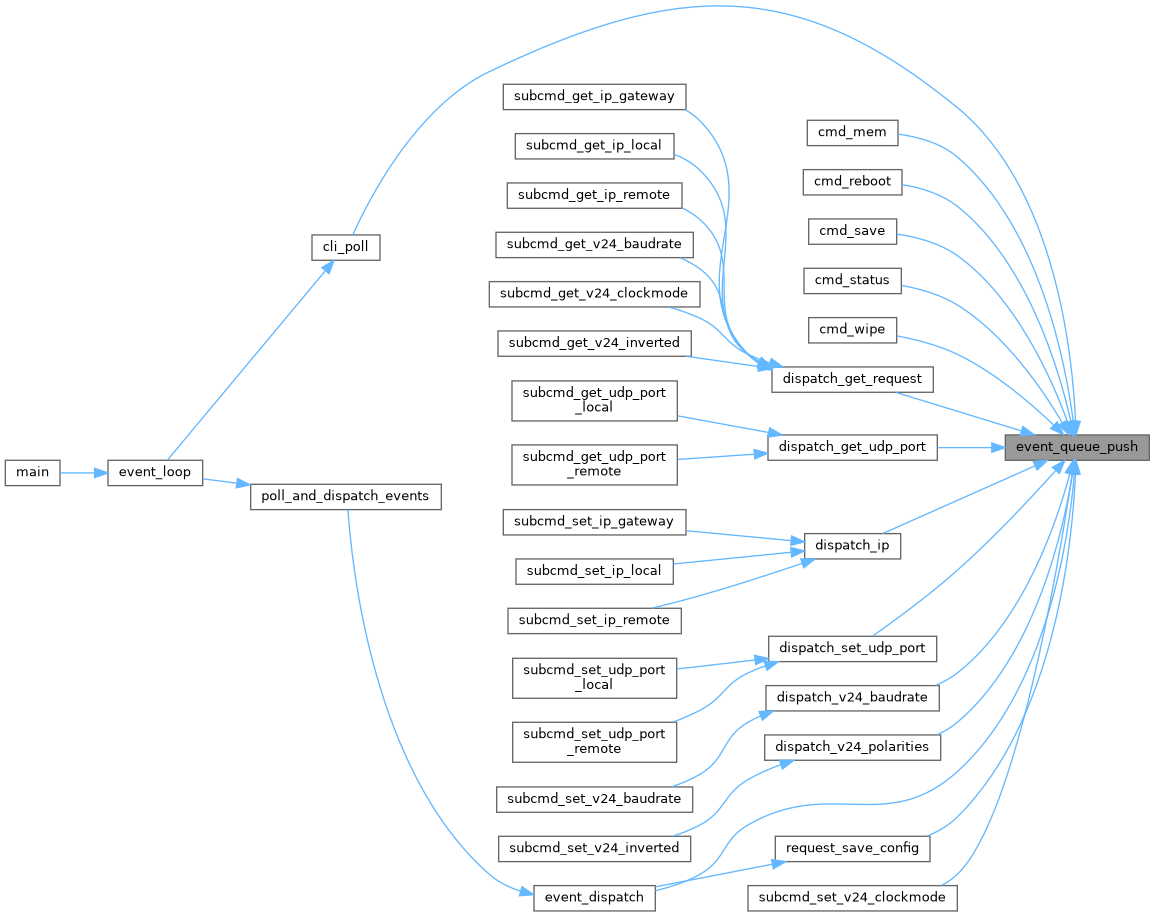

Here is the caller graph for this function:

Variable Documentation

event_queue

event_t event_queue[EVENT_QUEUE_CAPACITY]

static

Definition at line 25 of file event_queue.c.

Referenced by event_queue_init(), event_queue_pop(), and event_queue_push().

event_queue_high_water_mark

uint8_t event_queue_high_water_mark = 0

static

Definition at line 28 of file event_queue.c.

Referenced by event_queue_get_high_water_mark(), event_queue_init(), and event_queue_push().

event_queue_push_drops

uint32_t event_queue_push_drops = 0

static

Definition at line 29 of file event_queue.c.

Referenced by event_queue_get_push_drop_count(), event_queue_init(), and event_queue_push().

event_queue_read

uint8_t event_queue_read = 0

static

Definition at line 27 of file event_queue.c.

Referenced by event_queue_count_internal(), event_queue_init(), event_queue_is_empty(), event_queue_is_full(), event_queue_pop(), and event_queue_push().

event_queue_write

uint8_t event_queue_write = 0

static

Definition at line 26 of file event_queue.c.

Referenced by event_queue_count_internal(), event_queue_init(), event_queue_is_empty(), event_queue_is_full(), event_queue_pop(), and event_queue_push().
