cli_commands.c File Reference

#include "cli_commands.h"
#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>
#include <stdio.h>
#include <string.h>
#include "hardware/gpio.h"
#include "hardware/structs/io_bank0.h"
#include "hardware/watchdog.h"
#include "wizchip_conf.h"
#include "wizchip_qspi_pio.h"
#include "drivers/v24_config.h"
#include "platform/watchdog.h"
#include "system/cli_parser.h"
#include "system/common.h"
#include "system/error.h"
#include "system/event_queue.h"

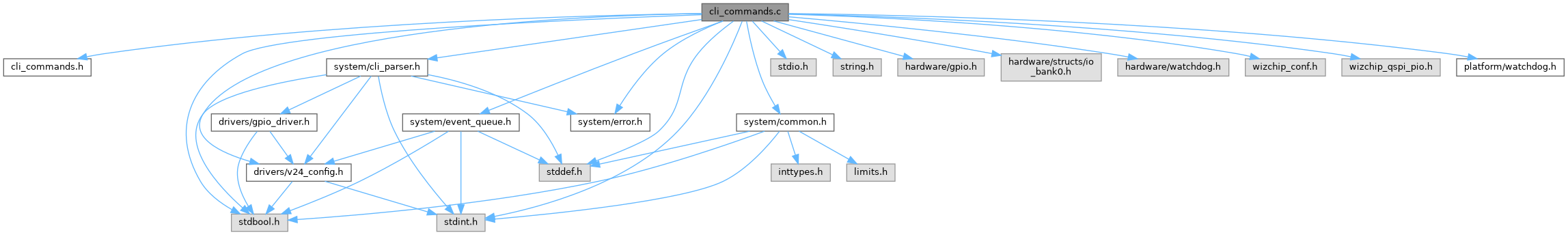

Include dependency graph for cli_commands.c:

Go to the source code of this file.

Data Structures
struct	command_t
struct	category_t
struct	subcmd_t
struct	loglevel_entry_t

Macros
#define	MAX_CMD_BUFFER_LEN   16
#define	MAX_PIN_NAME_LEN   16
#define	MAX_ARG_BUFFER_LEN   64
#define	INVERT_HELP   "Invert pins (comma-separated, e.g. set v24 invert txd,rxd)"
#define	NUM_COMMANDS   (sizeof(commands) / sizeof(commands[0]))
#define	NUM_CATEGORIES   ARRAY_LEN(categories)
#define	NUM_NET_SUBCMDS   ARRAY_LEN(net_subcmds)
#define	NUM_V24_SUBCMDS   ARRAY_LEN(v24_subcmds)
#define	NUM_PINS   get_num_pins()
#define	NUM_V24_BAUDRATES   ARRAY_LEN(v24_baudrates)
#define	NUM_LOGLEVELS   ARRAY_LEN(loglevels)

Typedefs
typedef void(*	cmd_handler_t) (const char *args)
typedef void(*	category_set_handler_t) (const char *args)
typedef void(*	category_get_handler_t) (const char *args)
typedef void(*	subcmd_set_handler_t) (const char *args)
typedef void(*	subcmd_get_handler_t) (const char *args)

Functions
static void	cmd_help (const char *args)
static void	cmd_status (const char *args)
static void	cmd_mem (const char *args)
static void	cmd_net (const char *args)
static void	cmd_set (const char *args)
static void	cmd_get (const char *args)
static void	cmd_pininfo (const char *args)
static void	cmd_save (const char *args)
static void	cmd_wipe (const char *args)
static void	cmd_reboot (const char *args)
static void	cat_gpio_set (const char *args)
static void	cat_gpio_get (const char *args)
static void	cat_net_set (const char *args)
static void	cat_net_get (const char *args)
static void	cat_v24_set (const char *args)
static void	cat_v24_get (const char *args)
static void	cat_loglevel_set (const char *args)
static void	cat_loglevel_get (const char *args)
static void	subcmd_set_ip_local (const char *args)
static void	subcmd_get_ip_local (const char *args)
static void	subcmd_set_ip_remote (const char *args)
static void	subcmd_get_ip_remote (const char *args)
static void	subcmd_set_ip_gateway (const char *args)
static void	subcmd_get_ip_gateway (const char *args)
static void	subcmd_set_udp_port_local (const char *args)
static void	subcmd_get_udp_port_local (const char *args)
static void	subcmd_set_udp_port_remote (const char *args)
static void	subcmd_get_udp_port_remote (const char *args)
static void	subcmd_set_v24_baudrate (const char *args)
static void	subcmd_get_v24_baudrate (const char *args)
static void	subcmd_set_v24_inverted (const char *args)
static void	subcmd_get_v24_inverted (const char *args)
static void	subcmd_set_v24_clockmode (const char *args)
static void	subcmd_get_v24_clockmode (const char *args)
static void	dispatch_v24_polarities (const V24_POLARITIES_T *polarities)
static void	dispatch_get_request (event_queue_data_types_t type, event_type_t event_type)
static void	dispatch_v24_baudrate (const V24_BAUDRATE_T *baudrate)
static void	dispatch_ip (const uint8_t *ip_addr, const event_queue_data_types_t type)
static void	dispatch_get_udp_port (const event_queue_data_types_t type)
static void	dispatch_set_udp_port (const event_queue_data_types_t type, uint16_t port)
const char *	get_command_name (int index)
	Return command name by table index.
void	handle_cli_line (const char *line)
	Parse and execute one CLI input line.

Variables
static const command_t	commands []
static const category_t	categories []
static const subcmd_t	net_subcmds []
static const subcmd_t	v24_subcmds []
static const V24_BAUDRATE_T	v24_baudrates []
static const loglevel_entry_t	loglevels []

Macro Definition Documentation

INVERT_HELP

#define INVERT_HELP   "Invert pins (comma-separated, e.g. set v24 invert txd,rxd)"

Definition at line 137 of file cli_commands.c.

MAX_ARG_BUFFER_LEN

#define MAX_ARG_BUFFER_LEN   64

Definition at line 40 of file cli_commands.c.

MAX_CMD_BUFFER_LEN

#define MAX_CMD_BUFFER_LEN   16

Definition at line 38 of file cli_commands.c.

MAX_PIN_NAME_LEN

#define MAX_PIN_NAME_LEN   16

Definition at line 39 of file cli_commands.c.

NUM_CATEGORIES

#define NUM_CATEGORIES   ARRAY_LEN(categories)

Definition at line 145 of file cli_commands.c.

NUM_COMMANDS

#define NUM_COMMANDS   (sizeof(commands) / sizeof(commands[0]))

Definition at line 144 of file cli_commands.c.

NUM_LOGLEVELS

#define NUM_LOGLEVELS   ARRAY_LEN(loglevels)

Definition at line 166 of file cli_commands.c.

NUM_NET_SUBCMDS

#define NUM_NET_SUBCMDS   ARRAY_LEN(net_subcmds)

Definition at line 146 of file cli_commands.c.

NUM_PINS

#define NUM_PINS   get_num_pins()

Definition at line 148 of file cli_commands.c.

NUM_V24_BAUDRATES

#define NUM_V24_BAUDRATES   ARRAY_LEN(v24_baudrates)

Definition at line 154 of file cli_commands.c.

NUM_V24_SUBCMDS

#define NUM_V24_SUBCMDS   ARRAY_LEN(v24_subcmds)

Definition at line 147 of file cli_commands.c.

Typedef Documentation

category_get_handler_t

typedef void(* category_get_handler_t) (const char *args)

Definition at line 53 of file cli_commands.c.

category_set_handler_t

typedef void(* category_set_handler_t) (const char *args)

Definition at line 52 of file cli_commands.c.

cmd_handler_t

typedef void(* cmd_handler_t) (const char *args)

Definition at line 43 of file cli_commands.c.

subcmd_get_handler_t

typedef void(* subcmd_get_handler_t) (const char *args)

Definition at line 64 of file cli_commands.c.

subcmd_set_handler_t

typedef void(* subcmd_set_handler_t) (const char *args)

Definition at line 63 of file cli_commands.c.

Function Documentation

cat_gpio_get()

static void cat_gpio_get ( const char *  args )

static

Definition at line 603 of file cli_commands.c.

References E2S_ERR_CLI_UNKNOWN_PIN, E2S_ERR_CLI_USAGE_GET, E2S_OK, pin_info_t::gpio_num, LOG_PLAIN, MAX_PIN_NAME_LEN, and parse_get_args().

Here is the call graph for this function:

cat_gpio_set()

static void cat_gpio_set ( const char *  args )

static

Definition at line 540 of file cli_commands.c.

References E2S_ERR_CLI_PIN_INPUT_ONLY, E2S_ERR_CLI_UNKNOWN_PIN, E2S_ERR_CLI_USAGE_SET, E2S_OK, pin_info_t::gpio_num, LOG_PLAIN, MAX_PIN_NAME_LEN, and parse_set_gpio_args().

Here is the call graph for this function:

cat_loglevel_get()

static void cat_loglevel_get ( const char *  args )

static

Definition at line 347 of file cli_commands.c.

References get_loglevel(), log_level_tag(), and LOG_PLAIN.

Here is the call graph for this function:

cat_loglevel_set()

static void cat_loglevel_set ( const char *  args )

static

Definition at line 318 of file cli_commands.c.

References get_loglevel(), log_level_tag(), LOG_PLAIN, loglevels, NUM_LOGLEVELS, and set_loglevel().

Here is the call graph for this function:

cat_net_get()

static void cat_net_get ( const char *  args )

static

Definition at line 514 of file cli_commands.c.

References subcmd_t::get_handler, LOG_DEBUG, LOG_PLAIN, net_subcmds, and NUM_NET_SUBCMDS.

cat_net_set()

static void cat_net_set ( const char *  args )

static

Definition at line 578 of file cli_commands.c.

References LOG_PLAIN, net_subcmds, NUM_NET_SUBCMDS, and subcmd_t::set_handler.

cat_v24_get()

static void cat_v24_get ( const char *  args )

static

Definition at line 292 of file cli_commands.c.

References subcmd_t::get_handler, LOG_DEBUG, LOG_PLAIN, NUM_V24_SUBCMDS, and v24_subcmds.

cat_v24_set()

static void cat_v24_set ( const char *  args )

static

Definition at line 266 of file cli_commands.c.

References LOG_DEBUG, LOG_PLAIN, NUM_V24_SUBCMDS, subcmd_t::set_handler, and v24_subcmds.

cmd_get()

static void cmd_get ( const char *  args )

static

Definition at line 673 of file cli_commands.c.

References categories, category_t::get_handler, LOG_PLAIN, and NUM_CATEGORIES.

cmd_help()

static void cmd_help ( const char *  args )

static

Definition at line 715 of file cli_commands.c.

References categories, commands, get_pin_table(), LOG_PLAIN, net_subcmds, NUM_CATEGORIES, NUM_COMMANDS, NUM_NET_SUBCMDS, NUM_PINS, NUM_V24_BAUDRATES, NUM_V24_SUBCMDS, pin_table, v24_baudrates, and v24_subcmds.

Here is the call graph for this function:

cmd_mem()

static void cmd_mem ( const char *  args )

static

Definition at line 783 of file cli_commands.c.

References EV_MEM, event_queue_push(), LOG_PLAIN, and event_t::type.

Here is the call graph for this function:

cmd_net()

static void cmd_net ( const char *  args )

static

Definition at line 794 of file cli_commands.c.

References LOG_PLAIN.

cmd_pininfo()

static void cmd_pininfo ( const char *  args )

static

Definition at line 807 of file cli_commands.c.

References find_pin(), pin_info_t::gpio_num, LOG_PLAIN, and MAX_PIN_NAME_LEN.

Here is the call graph for this function:

cmd_reboot()

static void cmd_reboot ( const char *  args )

static

Definition at line 357 of file cli_commands.c.

References EV_REBOOT, event_queue_push(), and event_t::type.

Here is the call graph for this function:

cmd_save()

static void cmd_save ( const char *  args )

static

Definition at line 706 of file cli_commands.c.

References EV_SAVE_CONFIG, event_queue_push(), and event_t::type.

Here is the call graph for this function:

cmd_set()

static void cmd_set ( const char *  args )

static

Definition at line 649 of file cli_commands.c.

References categories, LOG_PLAIN, NUM_CATEGORIES, and category_t::set_handler.

cmd_status()

static void cmd_status ( const char *  args )

static

Definition at line 776 of file cli_commands.c.

References EV_STATUS, event_queue_push(), and event_t::type.

Here is the call graph for this function:

cmd_wipe()

static void cmd_wipe ( const char *  args )

static

Definition at line 698 of file cli_commands.c.

References EV_WIPE_CONFIG, event_queue_push(), and event_t::type.

Here is the call graph for this function:

dispatch_get_request()

static void dispatch_get_request ( event_queue_data_types_t  type, event_type_t  event_type  )

static

Definition at line 182 of file cli_commands.c.

References event_queue_push(), event_queue_data_t::id, and event_t::type.

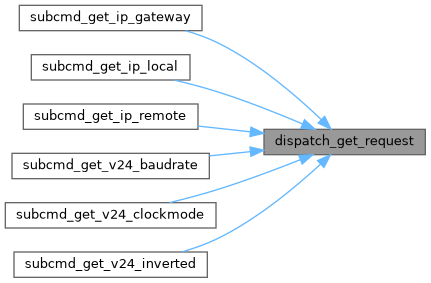

Referenced by subcmd_get_ip_gateway(), subcmd_get_ip_local(), subcmd_get_ip_remote(), subcmd_get_v24_baudrate(), subcmd_get_v24_clockmode(), and subcmd_get_v24_inverted().

Here is the call graph for this function:

Here is the caller graph for this function:

dispatch_get_udp_port()

static void dispatch_get_udp_port ( const event_queue_data_types_t  type )

static

Definition at line 445 of file cli_commands.c.

References EV_GET_NET_SETTINGS, event_queue_push(), event_queue_data_t::id, and event_t::type.

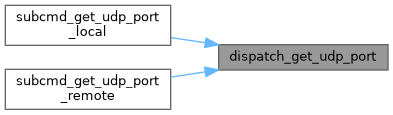

Referenced by subcmd_get_udp_port_local(), and subcmd_get_udp_port_remote().

Here is the call graph for this function:

Here is the caller graph for this function:

dispatch_ip()

static void dispatch_ip ( const uint8_t *  ip_addr, const event_queue_data_types_t  type  )

static

Definition at line 366 of file cli_commands.c.

References event_t::bytes, event_t::data, EV_SET_NET_SETTINGS, event_queue_push(), event_queue_data_t::id, event_queue_data_t::ip, event_t::type, and event_queue_data_t::value.

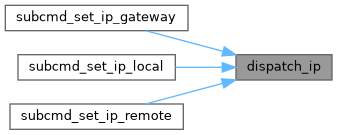

Referenced by subcmd_set_ip_gateway(), subcmd_set_ip_local(), and subcmd_set_ip_remote().

Here is the call graph for this function:

Here is the caller graph for this function:

dispatch_set_udp_port()

static void dispatch_set_udp_port ( const event_queue_data_types_t  type, uint16_t  port  )

static

Definition at line 458 of file cli_commands.c.

References EV_SET_NET_SETTINGS, event_queue_push(), event_queue_data_t::id, and event_t::type.

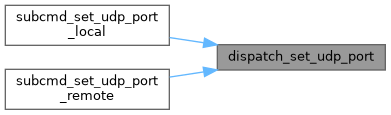

Referenced by subcmd_set_udp_port_local(), and subcmd_set_udp_port_remote().

Here is the call graph for this function:

Here is the caller graph for this function:

dispatch_v24_baudrate()

static void dispatch_v24_baudrate ( const V24_BAUDRATE_T *  baudrate )

static

Definition at line 211 of file cli_commands.c.

References event_queue_data_t::baudrate, EV_SET_V24_SETTINGS, event_queue_push(), event_queue_data_t::id, event_t::type, V24_BAUDRATE, and event_queue_data_t::value.

Referenced by subcmd_set_v24_baudrate().

Here is the call graph for this function:

Here is the caller graph for this function:

dispatch_v24_polarities()

static void dispatch_v24_polarities ( const V24_POLARITIES_T *  polarities )

static

Definition at line 168 of file cli_commands.c.

References EV_SET_V24_SETTINGS, event_queue_push(), event_queue_data_t::id, event_queue_data_t::polarities, event_t::type, V24_POLARITIES, and event_queue_data_t::value.

Referenced by subcmd_set_v24_inverted().

Here is the call graph for this function:

Here is the caller graph for this function:

get_command_name()

const char * get_command_name

(

int

index

)

Return command name by table index.

Parameters

index

Command table index.

Returns

Command name string or NULL when out of range.

Definition at line 834 of file cli_commands.c.

References commands, and command_t::name.

handle_cli_line()

void handle_cli_line

(

const char *

line

)

Parse and execute one CLI input line.

Process one CLI line.

Parameters

line	Null-terminated command line.

Definition at line 839 of file cli_commands.c.

References cli_parse(), commands, E2S_ERR_CLI_EMPTY_LINE, E2S_ERR_CLI_LINE_TRUNCATED, E2S_OK, command_t::handler, LOG_PLAIN, MAX_ARG_BUFFER_LEN, MAX_CMD_BUFFER_LEN, and NUM_COMMANDS.

Referenced by event_dispatch().

Here is the call graph for this function:

Here is the caller graph for this function:

subcmd_get_ip_gateway()

static void subcmd_get_ip_gateway ( const char *  args )

static

Definition at line 424 of file cli_commands.c.

References dispatch_get_request(), EV_GET_NET_SETTINGS, LOG_PLAIN, and NET_IP_GATEWAY.

Here is the call graph for this function:

subcmd_get_ip_local()

static void subcmd_get_ip_local ( const char *  args )

static

Definition at line 380 of file cli_commands.c.

References dispatch_get_request(), EV_GET_NET_SETTINGS, LOG_PLAIN, and NET_IP_LOCAL.

Here is the call graph for this function:

subcmd_get_ip_remote()

static void subcmd_get_ip_remote ( const char *  args )

static

Definition at line 403 of file cli_commands.c.

References dispatch_get_request(), EV_GET_NET_SETTINGS, LOG_PLAIN, and NET_IP_REMOTE.

Here is the call graph for this function:

subcmd_get_udp_port_local()

static void subcmd_get_udp_port_local ( const char *  args )

static

Definition at line 471 of file cli_commands.c.

References dispatch_get_udp_port(), LOG_PLAIN, and NET_PORT_LOCAL.

Here is the call graph for this function:

subcmd_get_udp_port_remote()

static void subcmd_get_udp_port_remote ( const char *  args )

static

Definition at line 492 of file cli_commands.c.

References dispatch_get_udp_port(), LOG_PLAIN, and NET_PORT_REMOTE.

Here is the call graph for this function:

subcmd_get_v24_baudrate()

static void subcmd_get_v24_baudrate ( const char *  args )

static

Definition at line 260 of file cli_commands.c.

References dispatch_get_request(), EV_GET_V24_SETTINGS, and V24_BAUDRATE.

Here is the call graph for this function:

subcmd_get_v24_clockmode()

static void subcmd_get_v24_clockmode ( const char *  args )

static

Definition at line 254 of file cli_commands.c.

References dispatch_get_request(), EV_GET_V24_SETTINGS, and V24_CLOCK_MODE.

Here is the call graph for this function:

subcmd_get_v24_inverted()

static void subcmd_get_v24_inverted ( const char *  args )

static

Definition at line 205 of file cli_commands.c.

References dispatch_get_request(), EV_GET_V24_SETTINGS, and V24_POLARITIES.

Here is the call graph for this function:

subcmd_set_ip_gateway()

static void subcmd_set_ip_gateway ( const char *  args )

static

Definition at line 434 of file cli_commands.c.

References dispatch_ip(), E2S_OK, LOG_PLAIN, NET_IP_GATEWAY, and parse_set_ip_remote_args().

Here is the call graph for this function:

subcmd_set_ip_local()

static void subcmd_set_ip_local ( const char *  args )

static

Definition at line 390 of file cli_commands.c.

References dispatch_ip(), E2S_OK, LOG_PLAIN, NET_IP_LOCAL, NET_IP_MASK, and parse_set_ip_args().

Here is the call graph for this function:

subcmd_set_ip_remote()

static void subcmd_set_ip_remote ( const char *  args )

static

Definition at line 413 of file cli_commands.c.

References dispatch_ip(), E2S_OK, LOG_PLAIN, NET_IP_REMOTE, and parse_set_ip_remote_args().

Here is the call graph for this function:

subcmd_set_udp_port_local()

static void subcmd_set_udp_port_local ( const char *  args )

static

Definition at line 481 of file cli_commands.c.

References dispatch_set_udp_port(), E2S_OK, LOG_PLAIN, NET_PORT_LOCAL, and parse_set_udp_port_local_args().

Here is the call graph for this function:

subcmd_set_udp_port_remote()

static void subcmd_set_udp_port_remote ( const char *  args )

static

Definition at line 503 of file cli_commands.c.

References dispatch_set_udp_port(), E2S_OK, LOG_PLAIN, NET_PORT_REMOTE, and parse_set_udp_port_remote_args().

Here is the call graph for this function:

subcmd_set_v24_baudrate()

static void subcmd_set_v24_baudrate ( const char *  args )

static

Definition at line 244 of file cli_commands.c.

References dispatch_v24_baudrate(), E2S_OK, LOG_PLAIN, and parse_set_v24_baudrate().

Here is the call graph for this function:

subcmd_set_v24_clockmode()

static void subcmd_set_v24_clockmode ( const char *  args )

static

Definition at line 224 of file cli_commands.c.

References E2S_OK, EV_SET_V24_SETTINGS, event_queue_push(), event_queue_data_t::id, LOG_PLAIN, parse_set_v24_clockmode(), event_t::type, V24_CLOCK_MODE, event_queue_data_t::v24_clock_mode, and event_queue_data_t::value.

Here is the call graph for this function:

subcmd_set_v24_inverted()

static void subcmd_set_v24_inverted ( const char *  args )

static

Definition at line 194 of file cli_commands.c.

References dispatch_v24_polarities(), E2S_OK, LOG_PLAIN, and parse_set_v24_polarities().

Here is the call graph for this function:

Variable Documentation

categories

const category_t categories[]

static

Initial value:

= {
    {"gpio", cat_gpio_set, cat_gpio_get, "GPIO controls and queries"},
    {"net", cat_net_set, cat_net_get, "Network configuration and queries"},
    {"v24", cat_v24_set, cat_v24_get, "V.24 config (inverted pins, baudrate)"},
    {"loglevel", cat_loglevel_set, cat_loglevel_get, "Runtime logging level"}}

Definition at line 124 of file cli_commands.c.

Referenced by cmd_get(), cmd_help(), and cmd_set().

commands

const command_t commands[]

static

Initial value:

= {
    {"help", cmd_help, "Show available commands"},
    {"status", cmd_status, "Show system status and RXC estimate"},
    {"mem", cmd_mem, "Show RAM/flash memory usage"},
    {"save", cmd_save, "Persist current configuration to flash"},
    {"wipe", cmd_wipe, "Erase persistent configuration from flash"},
    {"net", cmd_net, "Show current network status (W5500)"},
    {"set", cmd_set, "Set values (e.g. set gpio <pin> <0|1>, set net ip.local <addr>/<cidr>)"},
    {"get", cmd_get, "Get values (e.g. get gpio <pin>, get net ip.local)"},
    {"pininfo", cmd_pininfo, "Show pin details: pininfo <pin>"},
    {"reboot", cmd_reboot, "Reboot the device"},
}

Definition at line 111 of file cli_commands.c.

Referenced by cmd_help(), get_command_name(), and handle_cli_line().

loglevels

const loglevel_entry_t loglevels[]

static

Initial value:

= {
    {"error", LOG_LEVEL_ERROR}, {"info", LOG_LEVEL_INFO},    {"debug", LOG_LEVEL_DEBUG},
    {"trace", LOG_LEVEL_TRACE}, {"tracea", LOG_LEVEL_TRACE},
}

Definition at line 162 of file cli_commands.c.

Referenced by cat_loglevel_set().

net_subcmds

const subcmd_t net_subcmds[]

static

Initial value:

= {
    {"ip.local", subcmd_set_ip_local, subcmd_get_ip_local, "Local IP address (CIDR)"},
    {"ip.remote", subcmd_set_ip_remote, subcmd_get_ip_remote, "Remote IP address"},
    {"ip.gateway", subcmd_set_ip_gateway, subcmd_get_ip_gateway, "Gateway IP address"},
    {"udp.port.local", subcmd_set_udp_port_local, subcmd_get_udp_port_local, "Local UDP port"},
    {"udp.port.remote", subcmd_set_udp_port_remote, subcmd_get_udp_port_remote, "Remote UDP port"},
}

Definition at line 130 of file cli_commands.c.

Referenced by cat_net_get(), cat_net_set(), and cmd_help().

v24_baudrates

const V24_BAUDRATE_T v24_baudrates[]

static

Initial value:

= {
    V24_BAUD_1200,  V24_BAUD_2400,  V24_BAUD_4800,  V24_BAUD_9600,   V24_BAUD_16000,
    V24_BAUD_19200, V24_BAUD_38400, V24_BAUD_57600, V24_BAUD_115200,
}

Definition at line 150 of file cli_commands.c.

Referenced by cmd_help().

v24_subcmds

const subcmd_t v24_subcmds[]

static

Initial value:

= {
    {"invert", subcmd_set_v24_inverted, subcmd_get_v24_inverted, INVERT_HELP},
    {"baudrate", subcmd_set_v24_baudrate, subcmd_get_v24_baudrate, "Baudrate"},
    {"txclock", subcmd_set_v24_clockmode, subcmd_get_v24_clockmode,
     "<0|1> Internal or external tx clock"}}

Definition at line 138 of file cli_commands.c.

Referenced by cat_v24_get(), cat_v24_set(), and cmd_help().
